This item is Discontinued.

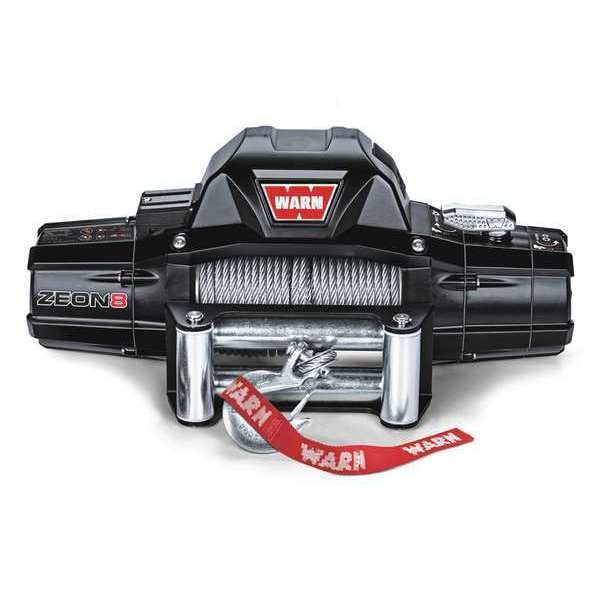

Warn Electric Winch, HP, 12VDC ZEON 8

Electric Winch, HP, 12VDC (Discontinued)

  • Mfr # ZEON 8
  • Zoro # G8064436
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZEON 8
Zoro #
G8064436
UPC #
012748889809
Country of Origin
United States

Dimensions

Control Pendant Cord Length
12 ft
Overall Height
10 1/2 in
Overall Width
7 in
Included Rope Dia.
5/16 in
Manufacturers Warranty Length
7 yr Electric, Limited Lifetime Mechanical
Overall Length
24 1/4 in
Included Rope Length
100 ft
Mfr. Warranty Length
7 yr Limited (Electrical); Limited Lifetime (Mechanical)
Line Length
100 ft
Included Line Diameter
3/10 in
Controller Cord Length
12 ft

Details

Electric Winch Item
Electric Winch
Winch Type
Pulling
Voltage Rating
12V DC
1st Layer Load Capacity
8,000 lb
1st Layer Line Speed
6.2 fpm
Rope Material
Wire
Full Load Amps
413 A
Winch Gear Type
3-Stage Planetary
Item
Electric Winch
Winch Gear Ratio
162:1
Gear Type
Planetary
Gear Ratio
162:1
Clutch Release
Yes
1st Layer Line Pull
8000 lb.
Clutch Type
Rotating Ring Gear
Full Load Line Speed
6.3 fpm
No Load Line Speed
35 fpm
Drum Capacity for 5/16 In. Cable
100 ft
Mechanical Brake
Yes
Series
Zeon
Free Spooling Clutch Type
Lever
Pulley Block
No
Color
Black
Max Drum Capacity per Line Dia
100 ft per 5/16 in
Resistance Properties
Corrosion Resistant, Waterproof
Compatible Line
Wire Rope
Included Components
Clutch Release, Brake
Number of Gear Settings
3
Body Finish
Powder Coated
Maximum Pulling Capacity
8,000 lb
Body Material
Steel
Operation
Pulling
Maximum Current
413 A
Includes Brake
Brake Included
Operating Voltage
12V DC
Voltage
12V DC

Description

Electric Winch, 1st Layer Line Speed 6.2 fpm, 1st Layer Load Capacity 8,000 lb, Operating Voltage 12V DC, Maximum Current 413 A, Number of Gear Settings 3, Gear Ratio 162:1, Gear Type Planetary, Line Length 100 ft, Clutch Type Rotating Ring Gear, Body Material Steel, Color Black, Compatible Line Wire Rope, Controller Cord Length 12 ft, Maximum Drum Capacity per Line Diameter 100 ft per 5/16 in, Included Components Clutch Release, Brake, Included Line Diameter 3/10 in
