80/20

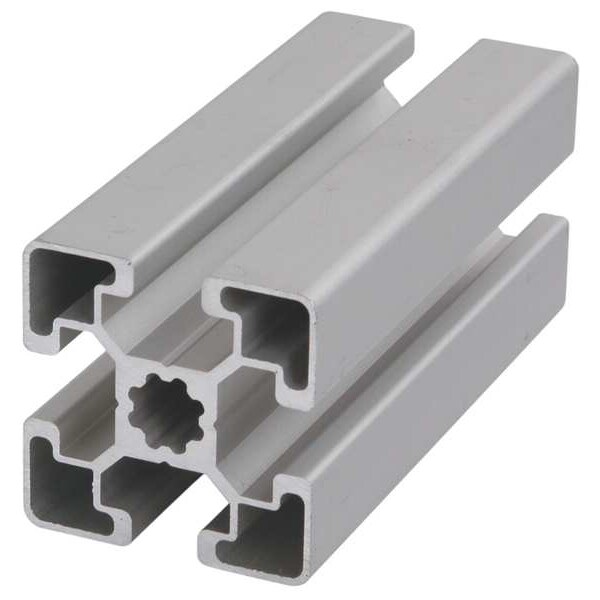

Extrusion, T-Slotted, 45S, 4M L, 45 mm W

80/20 Extrusion,  T-Slotted,  45S,  4M L,  45 mm W 45-4545-LITE-4M
Hover or click to zoom Tap to zoom
  • Length: 4 m
  • Width (In.): -
  • Type: T-Slotted
  • Material: Aluminum
  • Finish: Clear Anodized
  • Height (In.): -
  • Extrusion Texture: Smooth
  • Number of Open Slots: 4
See full product details
$202.43
Item requires special delivery charges. A $50.00 per item surcharge will be applied.

Subtotal: $202.43

80/20 #45-4545-LITE-4M Specifications

  • Length: 4 m
  • Width (In.): -
  • Type: T-Slotted
  • Material: Aluminum
  • Finish: Clear Anodized
  • Height (In.): -
  • Extrusion Texture: Smooth
  • Number of Open Slots: 4
  • For Use With: 45 Series
  • Bore Dia. (mm): 10.0 mm
  • Width (mm): 45.0 mm
  • Series: 45 Series
  • Yield Strength: 241.1 N/mm²
  • Slot Width (In.): 0.4 in
  • Height (mm): 45.0 mm
  • Extrusion Profile: Square
  • Weight/Ft. (Lb.): 0.94 lb/ft
  • Slot Width (mm): 10.13 mm
  • Item: Framing Extrusion
  • Bore Dia. (In.): -
  • Slot Location: Adjacent-Sides
  • Rail Profile: Single
  • Extrusion Type: T-Slotted
  • System of Measurement: Metric
  • Length (Straight Wireway): 4 m
  • Overall Length: 4 m
  • Rail HxW: 45 mm x 45 mm
  • Weight per Unit Length: 0.94 lb-ft
  • Profile Height: 45 mm
  • Color: Silver
  • Product Type: T-Slot
  • Bore Diameter: 10 mm
  • Relative Profile Weight: Lite
  • Slot Width: 10.1 mm
  • Profile Shape: Square
  • Profile Type: Single
  • Nominal Length: 13 ft
  • Profile Width: 45 mm
  • Temper: T5
  • Country of Origin (subject to change): United States

Description

T-Slot, Metric, Single, Silver, Weight per Unit Length 0.94 lb-ft, Bore Diameter 10 mm, Extrusion Texture Smooth, Nominal Length 13 ft, Aluminum, Number of Open Slots 4, Profile Height 45 mm, Profile Width 45 mm, Overall Length 4 m, 45 Series, Square, Slot Width 10.1 mm, Yield Strength 241.1 N/mm�, Relative Profile Weight Lite, Slot Location Adjacent-Sides, Finish Anodized, Temper T5
