Product Information
MFR #
4033
Zoro #
G7996475
UPC #
817050403305
Country of Origin
Israel
Dimensions
Manufacturers Warranty Length
3 yr
Details

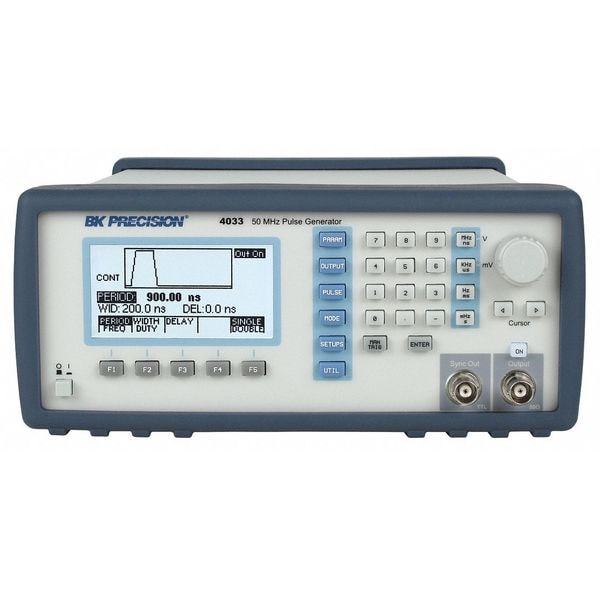

Item
Signal Generator
Type
Pulse
Other Waveform Range
0.1 Hz to 50 MHz (Pulse)
Special Features
Flexible Trigger Modes, Gated Burst and External Width,Programmable via GPIB and RS-232;SCPI compatible
Output Amplitude
0.1 V to 10 Vp-p into 50 ohm Load (20 Vp-p Max into Open Circuit)
Frequency Dial Accuracy (%)
0-100
Power Source
Line Input: 100 V AC, 240 V AC +/-10%, 50 VA max
Interface
RS-232 and GPIB
Impedance (Ohms)
50 Ohms typical
Includes
Power Cord, RS-232 Cable
Display
Graphical LCD
Product Type
Pulse Signal Generator
Calibration Certificate Type
NIST
Number of Channels
1
Single Pulse Wave Frequency - Maximum
50 MHz
Digital Display Screen Type
LCD
Number of Display Digits
6
Single Pulse Wave Frequency - Minimum
0.1 Hz
Waveforms Generated
Pulse
Square Wave Rise/Fall Time
6 ns to 100 ms
Wave Frequency Accuracy
+/-0.01%
Description
Signal Generator, Pulse, Other Waveform Range 0.1 Hz to 50 MHz (Pulse), Output Amplitude 0.1 V to 10 Vp-p into 50 ohm Load (20 Vp-p Max into Open Circuit), Impedance (Ohms) 50 Ohms typical, Output Attenuation Not Applicable, Frequency Dial Accuracy ( Percent) 0-100, Display Graphical LCD, Power Source Line Input: 100 V AC, 240 V AC +/-10 Percent, 50 VA max, Special Features Flexible Trigger Modes, Gated Burst and External Width,Programmable via GPIB and RS-232;SCPI compatible
