Century

Capacitor-Start Belt Drive Motor, 1, 1/3 HP, 56 Frame, 208-230V AC Voltage, No. of Speeds: 2

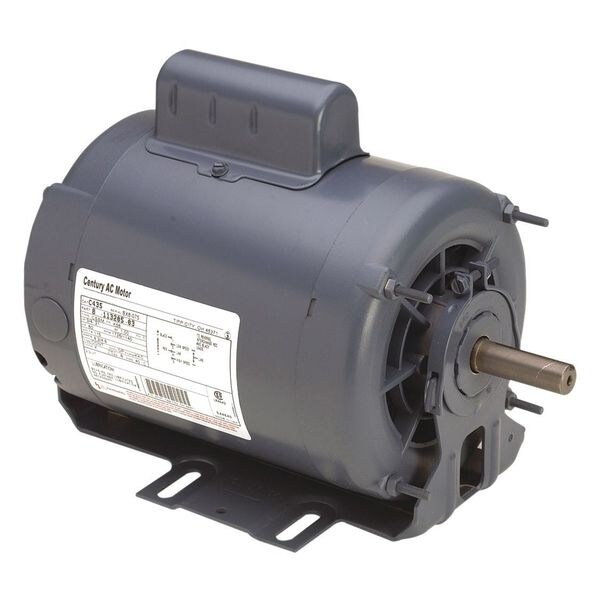

Century Capacitor-Start Belt Drive Motor,  1,  1/3 HP,  56 Frame,  208-230V AC Voltage,  No. of Speeds: 2 C472V1
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$460.53
  • Item: Belt Drive Motor
  • Motor Design: Capacitor-Start
  • Motor Enclosure Design: Open Dripproof
See full product details
This item ships free.
Total: $460.53

Century #C472V1 Specifications

  • Item: Belt Drive Motor
  • Motor Design: Capacitor-Start
  • Motor Enclosure Design: Open Dripproof
  • HP: 1, 1/3
  • No. of Speeds: 2
  • RPM Range: 1,701-1,800
  • Nameplate RPM: 1,725/1,140
  • Voltage: 208-230V AC
  • Frame: 56
  • Motor Mounting Type: Cradle Base
  • Shaft Dia.: 5/8 in
  • Motor Thermal Protection: Auto
  • Motor Service Factor: 1
  • Voltage Compatibility: 115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
  • Phase: Single
  • Motor Application: HVAC/R
  • Motor Sub Application: Belt Drive Fan/Blower
  • Body Dia.: 6 1/2 in
  • Shaft Length: 1 15/16 in
  • Ins. Class: B
  • Footnotes: 26
  • Motor Bearings: Ball
  • Nominal Efficiency: 70 %
  • Standards: CSA, UL Recognized
  • Frame Material: Rolled steel
  • Motor Shaft Rotation: CW/CCW
  • Full Load Amps: 6.3-6.0/3.8-3.3
  • Motor Frame Material: Steel
  • Mounting Stud Pattern: 4 1/8 in x 4 1/8 in
  • Hz: 60
  • Duty: Continuous
  • Overall Length: 12 11/16 in
  • Max. Ambient Temp.: 40 Degrees C
  • Motor Mounting Position: All Angle
  • Length Less Shaft: 10 3/4 in
  • Usable @ 200V: No
  • Weight: 36 lb
  • Duty Cycle: Continuous
  • Usable @ 208V: Yes
  • Country of Origin (subject to change): Mexico
Feedback Help us improve our product information

Description

Belt Drive Motor, Single Phase, Motor Design Capacitor-Start, 1, 1/3 HP, Nameplate RPM 1,725/1,140, No. of Speeds 2, Voltage 208-230V AC, 6.3-6.0/3.8-3.3 Full Load Amps, 56 Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle
