Century

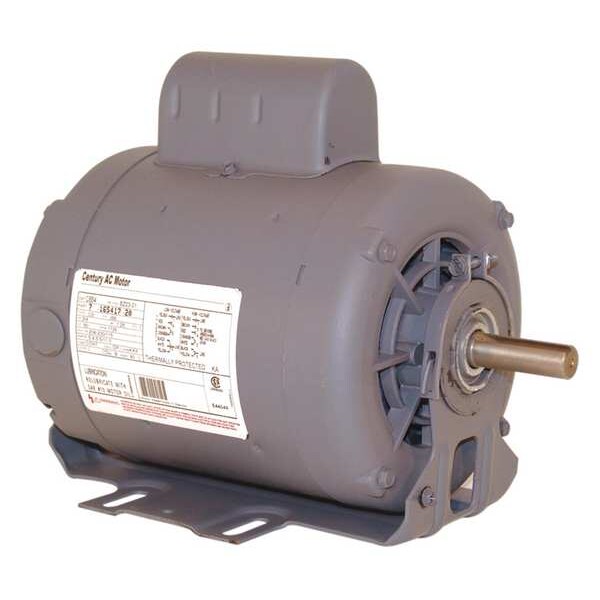

Capacitor-Start Belt Drive Motor, 1/2, 1/4 HP, 56 Frame, 115V AC Voltage, 1,725/1,140 Nameplate RPM

Hover or click to zoom Tap to zoom
Key Features
  • Item: Belt Drive Motor
  • Motor Design: Capacitor-Start
  • Motor Enclosure Design: Open Dripproof
  • HP: 1/2, 1/4
  • No. of Speeds: 2
  • RPM Range: 1,701-1,800
  • Nameplate RPM: 1,725/1,140
  • Voltage: 115V AC
See full product details
$250.59
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Century #C678V1 Specifications

  • Item: Belt Drive Motor
  • Motor Design: Capacitor-Start
  • Motor Enclosure Design: Open Dripproof
  • HP: 1/2, 1/4
  • No. of Speeds: 2
  • RPM Range: 1,701-1,800
  • Nameplate RPM: 1,725/1,140
  • Voltage: 115V AC
  • Frame: 56
  • Motor Mounting Type: Cradle Base
  • Shaft Dia.: 5/8 in
  • Motor Thermal Protection: Auto
  • Motor Service Factor: 1
  • Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
  • Phase: Single
  • Motor Application: HVAC/R
  • Motor Sub Application: Belt Drive Fan/Blower
  • Ins. Class: A
  • Overall Length: 11 7/16 in
  • Motor Shaft Rotation: CW/CCW
  • Frame Material: Rolled steel
  • Body Dia.: 6 1/2 in
  • Length Less Shaft: 9 1/2 in
  • Hz: 60
  • Motor Bearings: Sleeve
  • Full Load Amps: 6.8/4.8
  • Duty: Continuous
  • Max. Ambient Temp.: 40 Degrees C
  • Nominal Efficiency: 65 %
  • Motor Frame Material: Steel
  • Standards: CSA, UL Recognized
  • Motor Mounting Position: All Angle
  • Shaft Length: 1 15/16 in
  • Usable @ 208V: No
  • Duty Cycle: Continuous
  • Weight: 30 lb
  • Usable @ 200V: No
  • Country of Origin (subject to change): Mexico

Description

Belt Drive Motor, Single Phase, Motor Design Capacitor-Start, 1/2, 1/4 HP, Nameplate RPM 1,725/1,140, No. of Speeds 2, Voltage 115V AC, 6.8/4.8 Full Load Amps, 56 Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Steel
