Century

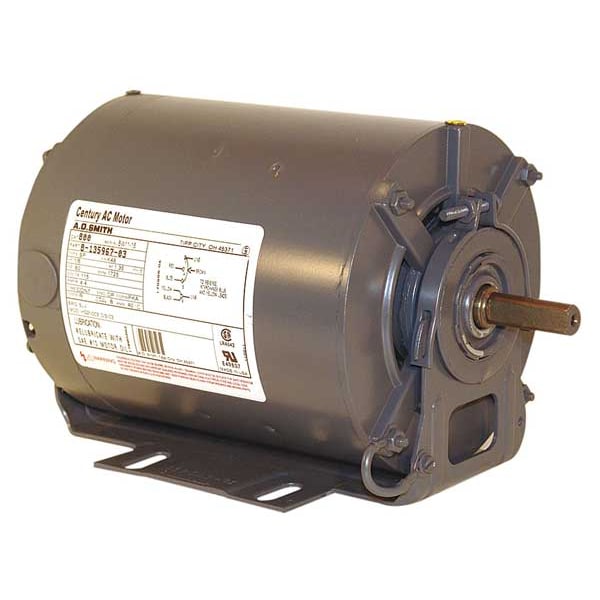

Capacitor-Start Belt Drive Motor, 1/3 HP, 56Z Frame, 115V AC Voltage, 1,725 Nameplate RPM

Century Capacitor-Start Belt Drive Motor,  1/3 HP,  56Z Frame,  115V AC Voltage,  1,725 Nameplate RPM 807L
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$194.69
  • Item: Belt Drive Motor
  • Motor Design: Capacitor-Start
  • Motor Enclosure Design: Open Dripproof
See full product details
This item ships free.
Total: $194.69

Century #807L Specifications

  • Item: Belt Drive Motor
  • Motor Design: Capacitor-Start
  • Motor Enclosure Design: Open Dripproof
  • HP: 1/3
  • No. of Speeds: 1
  • RPM Range: 1,701-1,800
  • Nameplate RPM: 1,725
  • Voltage: 115V AC
  • Frame: 56Z
  • Motor Mounting Type: Cradle Base
  • Shaft Dia.: 1/2 in
  • Motor Thermal Protection: Auto
  • Motor Service Factor: 1
  • Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
  • Phase: Single
  • Motor Application: HVAC/R
  • Motor Sub Application: Belt Drive Fan/Blower
  • Shaft Length: 1 1/2 in
  • Ins. Class: B
  • Motor Shaft Rotation: CW/CCW
  • Standards: CSA, UL Recognized
  • Duty: Continuous
  • Length Less Shaft: 8 7/8 in
  • Hz: 60
  • Footnotes: 260
  • Frame Material: Rolled steel
  • Max. Ambient Temp.: 40 Degrees C
  • Full Load Amps: 5.7
  • Motor Bearings: Sleeve
  • Resilient Ring Dia.: 2 1/2 in
  • Motor Frame Material: Steel
  • Body Dia.: 6 1/2 in
  • Motor Mounting Position: All Angle
  • Overall Length: 10 3/8 in
  • Duty Cycle: Continuous
  • Weight: 16 lb
  • Usable @ 208V: No
  • Usable @ 200V: No
  • Country of Origin (subject to change): Mexico
Feedback Help us improve our product information

Description

Belt Drive Motor, Single Phase, Motor Design Capacitor-Start, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, 5.7 Full Load Amps, 56Z Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Steel
