- Capacitor-Start Belt Drive Motor, 3/4, 1/3 HP, 56 Frame, 230V AC Voltage, 1,725/1,140 Nameplate RPM
Shop Alternate Products
This Product is Discontinued
Century

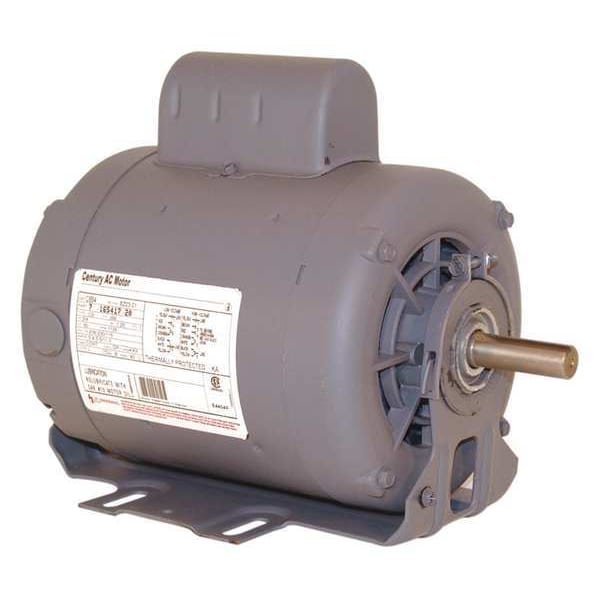

Capacitor-Start Belt Drive Motor, 3/4, 1/3 HP, 56 Frame, 230V AC Voltage, 1,725/1,140 Nameplate RPM (Discontinued)
Mfr # C742V1
Zoro # G0940554
Free Shipping & Returns
This Product is Discontinued
Key Features
- Motor Design Capacitor-Start
- Motor Enclosure Design Open Dripproof
- HP 1/3, 3/4
- No. of Speeds 2
- RPM Range 1,701-1,800
Customers Also Purchased
- Brand Century
-
MFR #
C742V1
-
Zoro #
G0940554
- Country of Origin Mexico
- Category Belt Drive Motors
Dimensions
Shaft Dia. | 5/8 in |
Shaft Length | 1 15/16 in |
Length Less Shaft | 10 1/4 in |
Body Dia. | 6 1/2 in |
Overall Length | 12 3/16 in |
Ring Dia. | 2-1/4" |
Details
Item | Belt Drive Motor |
Motor Design | Capacitor-Start |
Motor Enclosure Design | Open Dripproof |
HP | 1/3, 3/4 |
No. of Speeds | 2 |
RPM Range | 1,701-1,800 |
Nameplate RPM | 1,725/1,140 |
Voltage | 230V AC |
Frame | 56 |
Motor Mounting Type | Cradle Base |
Motor Thermal Protection | Auto |
Motor Service Factor | 1 |
Voltage Compatibility | 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC |
Phase | Single |
Motor Application | HVAC/R |
Motor Sub Application | Belt Drive Fan/Blower |
Nominal Efficiency | 70 % |
Motor Frame Material | Steel |
Duty | Continuous |
Motor Mounting Position | All Angle |
Hz | 60 Hz |
Standards | CSA, UL Recognized |
Motor Bearings | Sleeve |
Motor Shaft Rotation | CW/CCW |
Full Load Amps | 5.0/3.2 A |
Max. Ambient Temp. | 104 Degrees F |
Frame Material | Rolled steel |
Ins. Class | A |
Mounting Stud Pattern | 3-5/8" x 3-5/8" |
Ring to Ring Center | 5-11/16" |
Includes | 6 MFD 370 MFD Capacitor, Resilient Rings, 4 Snap Rings |
Application | Unit Heaters and Other Shaft-mounted Fan and Blower Equipment in Dusty, Dirty, Noncombustible Environments |
Motor Efficiency Group | Energy Efficient |
Weight | 34 lb |
Duty Cycle | Continuous |
Usable @ 200V | No |
Usable @ 208V | No |
Description
Belt Drive Motor, Single Phase, Motor Design Capacitor-Start, 1/3, 3/4 HP, Nameplate RPM 1,725/1,140, No. of Speeds 2, Voltage 230V AC, 5.0/3.2 A Full Load Amps, 56 Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle
