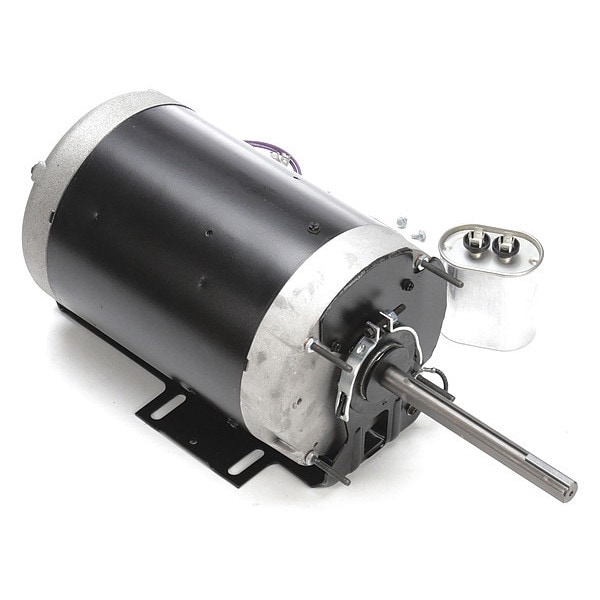

Condenser Fan Motor, 1 HP, 1075 rpm, 60 Hz

CENTURY |Zoro #: G0306372|Mfr #: FB1106TE

$334.69 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0306372 Mfr #: FB1106TE
Hz: 60Motor Service Factor: 1.00
Motor Shaft Rotation: CW/CCWMotor Application: HVAC/R
Phase: 1No. of Speeds: 1
Motor Sub Application: Condenser FanMotor Enclosure Design: Totally Enclosed Air-Over
Item: Condenser Fan MotorMotor Thermal Protection: Auto
Motor Design: Permanent Split CapacitorVoltage Compatibility: 208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460
Features: Internal Conduit Box for Enclosed Wiring ConnectionStandards: UL Recognized (E46412/E44549), CSA Certified (LR43341/LR4642)
Voltage: 208-230/460Resilient Ring Dia.: 2-1/2"
Shaft Length: 6"Ring to Ring Center: 11"
Overall Length: 17-5/16"Max. Ambient Temp.: 40 Degrees C
Nominal Efficiency: 75.0%Length Less Shaft: 11-5/16"
Duty: ContinuousShaft Dia.: 5/8"
Capacitor Required: IncludedMounting Stud Pattern: 4-1/8" x 4-1/8"
Stud Size: 10-32 x 1-1/4"Nameplate RPM: 1075
Ins. Class: BStud Quantity: 4
HP: 1Motor Bearings: Ball
Body Dia.: 6-1/2"Full Load Amps: 4.2-4.2/2.3
Motor Shaft Design: Keyed with Single FlatFrame: 56Y
Motor Mounting Position: Vertical Shaft UpMotor Mounting Type: Cradle Base
Country of Origin (subject to change): Mexico

Product Description

Condenser Fan Motor, Motor Design Permanent Split Capacitor, Motor Enclosure Design Totally Enclosed Air-Over, 1 HP, RPM Range 1001-1100, Nameplate RPM 1075, Voltage 208-230/460, 56Y Frame, Number of Speeds 1, Overall Length 17-5/16 In., Shaft Length 6 In., Shaft Orientation Up, Features Internal Conduit Box for Enclosed Wiring Connection, Motor Shaft Rotation CW/CCW, Full Load Amps 4.2-4.2/2.3, Cradle Base Motor Mounting Type, Thermal Protection Auto, Insulation Class B, Service Factor 1.0
