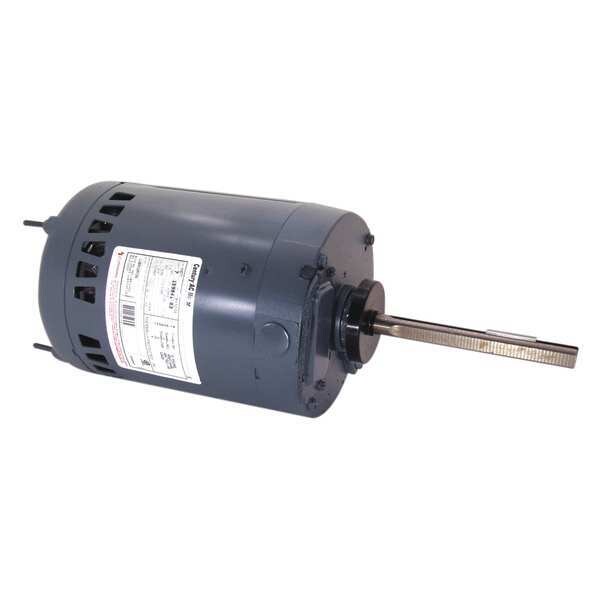

Condenser Fan Motor, 1 HP, 1140 rpm, 60 Hz

CENTURY| Zoro #: G0773473| Mfr #: H667

$202.28 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0773473 Mfr #: H667
Hz: 60Motor Service Factor: 1.00
Motor Shaft Rotation: CW/CCWMotor Bearings: Ball
Phase: 3No. of Speeds: 1
Motor Sub Application: Condenser FanMotor Application: HVAC/R
Motor Enclosure Design: Open Air-OverItem: Condenser Fan Motor
Motor Thermal Protection: AutoMotor Design: 3-Phase
Duty: ContinuousFeatures: Auto Protector, Quick Connect Design, Reversible
Standards: UL Recognized (E46412/E44549), CSA Certified (LR43341/LR4642)Voltage Compatibility: 200, 208, 230, 240, 460, 200-230, 200-230/440, 208-230/460, 220/460, 200-230/460, 230/460
Length Less Shaft: 10-7/8"Full Load Amps: 5.3-5.2/2.6
Shaft Dia.: 5/8"Body Dia.: 6-1/2"
Frame: 56YVoltage: 200-230/460
Ins. Class: BShaft Length: 6"
Motor Shaft Design: FlatOverall Length: 16-7/8"
Motor Mounting Position: Vertical Shaft UpNominal Efficiency: 75.0%
Motor Mounting Type: StudNameplate RPM: 1140
Max. Ambient Temp.: 60 Degrees CHP: 1
Country of Origin (subject to change): Mexico

Product Description

Condenser Fan Motor, Motor Design 3-Phase, Motor Enclosure Design Open Air-Over, 1 HP, RPM Range 1101-1200, Nameplate RPM 1140, Voltage 200-230/460, 56Y Frame, Number of Speeds 1, Overall Length 16-7/8 In., Shaft Length 6 In., Shaft Orientation Up, Features Auto Protector, Quick Connect Design, Reversible, Motor Shaft Rotation CW/CCW, Full Load Amps 5.3-5.2/2.6, Stud Motor Mounting Type, Thermal Protection Auto, Insulation Class B, Service Factor 1.0, Bearings Ball
