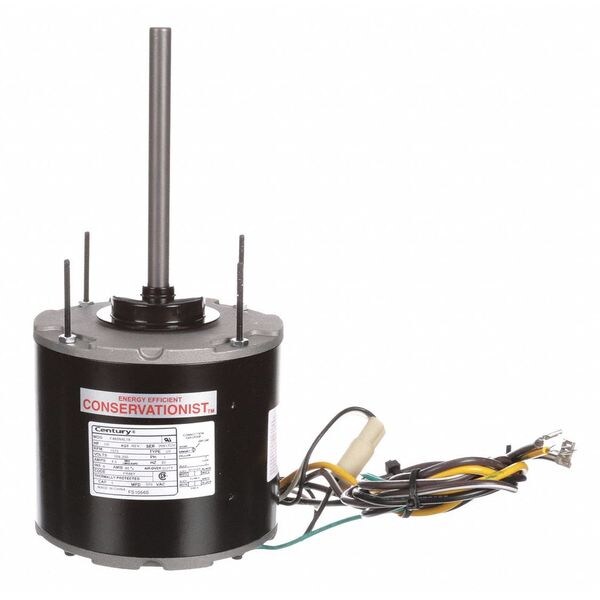

Condenser Fan Motor, 1/2 HP, 1075 rpm, 60Hz

CENTURY| Zoro #: G0747521| Mfr #: FS1056S

$77.30 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0747521 Mfr #: FS1056S
Motor Service Factor: 1.00Motor Sub Application: Condenser Fan
Motor Application: HVAC/RItem: Condenser Fan Motor
Motor Thermal Protection: AutoVoltage Compatibility: 115/208-230, 208-230, 208-240
Standards: UL Recognized (E46412/E44549), CSA Certified (LR43341/LR4642)Features: Energy Efficient, Auto Protector, Reversible
Duty: ContinuousStud Size: 8-32 x 1-5/8"
Capacitor Required: 2MDV4Stud Quantity: 4
Phase: 1Mounting Stud Pattern: 3-5/8" x 3-5/8"
Body Dia.: 5-5/8"Nameplate RPM: 1075
Ins. Class: BFrame: 48Y
HP: 1/2Motor Bearings: Sleeve
Full Load Amps: 3.2-3.6Motor Shaft Rotation: CW/CCW
No. of Speeds: 1Voltage: 208-230
Motor Shaft Design: FlatShaft Length: 5-5/8"
Motor Enclosure Design: Open Air-OverOverall Length: 11-7/16"
Motor Mounting Position: Vertical Shaft UpMax. Ambient Temp.: 60 Degrees C
Motor Mounting Type: StudLength Less Shaft: 5-13/16"
Hz: 60Lead Length: 27"
Motor Design: Permanent Split CapacitorShaft Dia.: 1/2"
Country of Origin (subject to change): Mexico

Product Description

Condenser Fan Motor, Motor Design Permanent Split Capacitor, Motor Enclosure Design Open Air-Over, 1/2 HP, RPM Range 1001-1100, Nameplate RPM 1075, Voltage 208-230, 48Y Frame, Number of Speeds 1, Overall Length 11-7/16 In., Shaft Length 5-5/8 In., Shaft Orientation Up, Features Energy Efficient, Auto Protector, Reversible, Motor Shaft Rotation CW/CCW, Full Load Amps 3.25-3.6, Stud Motor Mounting Type, Thermal Protection Auto, Insulation Class B, Service Factor 1.0, Bearings Sleeve
