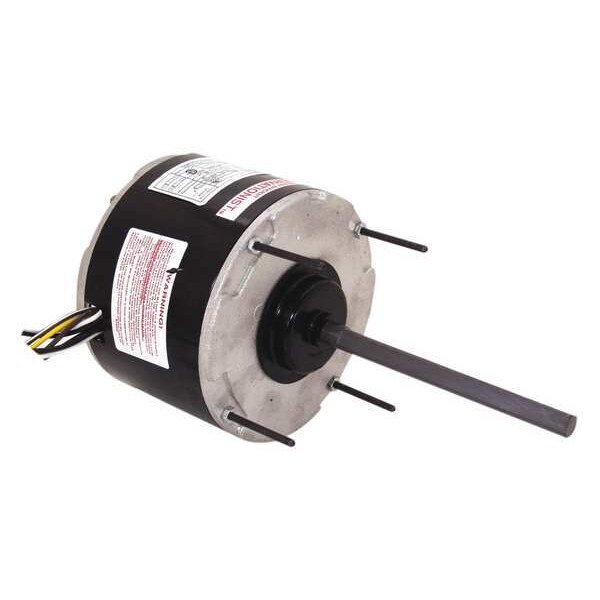

Condenser Fan Motor, 1/3 HP, 1075 rpm, 60Hz

CENTURY| Zoro #: G0837986| Mfr #: FS1036S

$75.41 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0837986 Mfr #: FS1036S
Motor Service Factor: 1.00Motor Sub Application: Condenser Fan
Motor Application: HVAC/RItem: Condenser Fan Motor
Motor Thermal Protection: AutoStandards: UL Recognized (E46412/E44549), CSA Certified (LR43341/LR4642)
Voltage Compatibility: 115/208-230, 208-230, 208-240Features: Energy Efficient, Auto Protector, Reversible
Motor Mounting Position: Vertical Shaft UpBody Dia.: 5-5/8"
Motor Mounting Type: StudFrame: 48Y
Lead Length: 27"Motor Design: Permanent Split Capacitor
No. of Speeds: 1Voltage: 208-230
Shaft Length: 5-5/8"Mounting Stud Pattern: 3-5/8" x 3-5/8"
Overall Length: 11-9/16"Nameplate RPM: 1075
Ins. Class: BMax. Ambient Temp.: 60 Degrees C
HP: 1/3Motor Bearings: Sleeve
Length Less Shaft: 5-15/16"Hz: 60
Full Load Amps: 2.2-2.5Motor Shaft Rotation: CW/CCW
Shaft Dia.: 1/2"Duty: Continuous
Motor Shaft Design: FlatStud Size: 8-32 x 1-5/8"
Capacitor Required: 2MDV4Motor Enclosure Design: Open Air-Over
Stud Quantity: 4Phase: 1
Country of Origin (subject to change): Mexico

Product Description

Condenser Fan Motor, Motor Design Permanent Split Capacitor, Motor Enclosure Design Open Air-Over, 1/3 HP, RPM Range 1001-1100, Nameplate RPM 1075, Voltage 208-230, 48Y Frame, Number of Speeds 1, Overall Length 11-9/16 In., Shaft Length 5-5/8 In., Shaft Orientation Up, Features Energy Efficient, Auto Protector, Reversible, Motor Shaft Rotation CW/CCW, Full Load Amps 2.25-2.5, Stud Motor Mounting Type, Thermal Protection Auto, Insulation Class B, Service Factor 1.0, Bearings Sleeve
