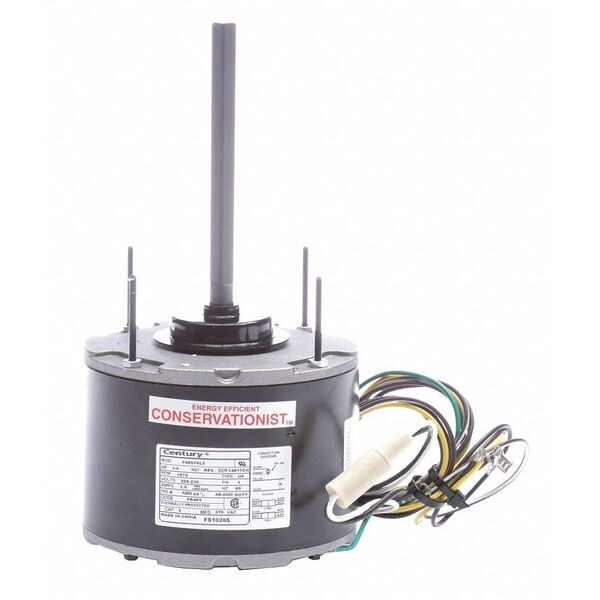

Condenser Fan Motor, 1/4 HP, 1075 rpm, 60Hz

  • Zoro #: G0532357
  • Mfr #: FS1026S

$60.75

  • Motor Shaft Design: Flat
  • Motor Thermal Protection: Auto
  • Capacitor Required: 2MDV4
See full product details
  • This item ships free.
  • Shipping & Returns
  • Sign up for Zmail and get 10% off your first order

Century #FS1026S Specifications

  • Zoro #: G0532357
  • Mfr #: FS1026S
Motor Shaft Design: Flat Motor Thermal Protection: Auto
Capacitor Required: 2MDV4 Stud Quantity: 4
Ins. Class: B Motor Enclosure Design: Open Air-Over
Phase: 1 Shaft Length: 5-5/8"
Motor Application: HVAC/R Voltage Compatibility: 115/208-230, 208-230, 208-240
Item: Condenser Fan Motor Hz: 60
Motor Mounting Type: Stud Motor Shaft Rotation: CW/CCW
No. of Speeds: 1 Lead Length: 27"
Voltage: 208-230 RPM Range: 1001-1100
Motor Mounting Position: Vertical Shaft Up Stud Size: 8-32 x 1-5/8"
HP: 1/4 Duty: Continuous
Motor Sub Application: Condenser Fan Features: Energy Efficient, Auto Protector, Reversible
Motor Service Factor: 1.00 Length Less Shaft: 5-5/16"
Shaft Dia.: 1/2" Full Load Amps: 1.3-1.5
Overall Length: 10-15/16" Motor Bearings: Sleeve
Mounting Stud Pattern: 3-5/8" x 3-5/8" Max. Ambient Temp.: 60 Degrees C
Nameplate RPM: 1075 Motor Design: Permanent Split Capacitor
Standards: UL Recognized (E46412/E44549), CSA Certified (LR43341/LR4642) Frame: 48Y
Body Dia.: 5-5/8" Country of Origin (subject to change): Mexico
Feedback Help us improve our product information

Description

Permanent split capacitor condenser fan motors are designed to dissipate heat from condensers, refrigeration equipment and heat pumps. Here is some additional information about Century Condenser Fan Motor. Voltage: 208-230, Hp: 1/4, Nameplate Rpm: 1075.
