Century

Motor, PSC, 1/15 HP, 1060 RPM, 115V, 4.3, OAO

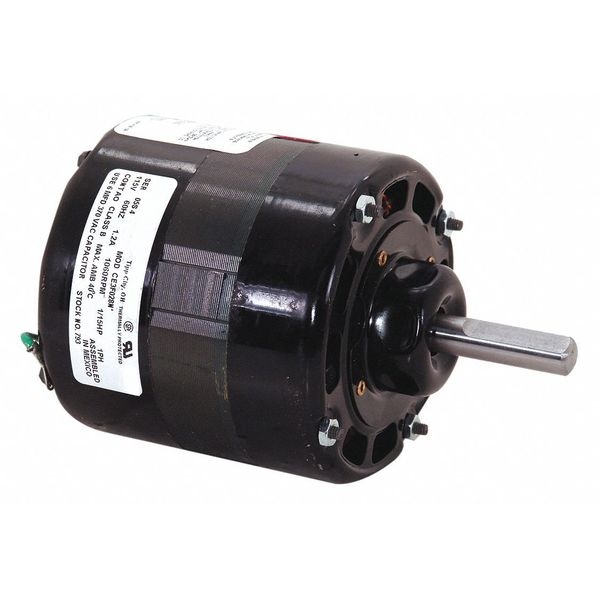

Century Motor, PSC, 1/15 HP, 1060 RPM, 115V, 4.3, OAO 793
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$212.68
  • No. of Speeds: 3
  • Length Less Shaft: 5 5/8 in
  • Ins. Class: B
See full product details
This item ships free.
Total: $212.68

Century #793 Specifications

  • No. of Speeds: 3
  • Length Less Shaft: 5 5/8 in
  • Ins. Class: B
  • Hz: 60 Hz
  • Motor Application: HVAC/R
  • Standards: CSA Certified, UL Recognized
  • Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
  • Application: OEM Replacement for Whalen, Roof and Wall Ventilators, Condenser Fans, Direct Drive Blowers, Unit Heaters, 78 for Use On Jenn Air 80 CR, Furnace Fan, Ventilating Units, 97 for Use On Intertherm Furnaces TAC 900, 950, 1033, 1043, 1050 R70 and M7G
  • Motor Design: Permanent Split Capacitor
  • Motor Sub Application: Direct Drive Fan/Blower
  • Duty: Continuous
  • Motor Shaft Design: Flat
  • Shaft Length: 2 5/16 in
  • Motor Mounting Type: Ring
  • Body Dia.: 43 in
  • Manufacturers Warranty Length: 1 yr
  • Mounting Stud Pattern: 4-1/8 in x 4-1/8 in
  • Capacitor Required: 2MDV5
  • Motor Thermal Protection: Auto
  • Motor Enclosure Design: Open Air-Over
  • Motor Shaft Rotation: CW/CCW
  • Frame: 4.4
  • Overall Length: 7 3/16 in
  • Full Load Amps: 1.02
  • Voltage: 115V AC
  • Item: Ventilation Motor
  • Motor Bearings: Sleeve
  • Phase: Single
  • Nameplate RPM: 1,060
  • Max. Ambient Temp.: 40 Degrees C
  • Shaft Dia.: 1/2 in
  • Motor Mounting Position: Horizontal
  • Motor Service Factor: 1
  • RPM Range: 1,001-1,100
  • HP: 1/15
  • Usable @ 208V: No
  • Mounting Holes: 4
  • Stud Quantity: 4
  • Weight: 7 lb
  • Duty Cycle: Continuous
  • Includes: Resilient Ring
  • Number of Shafts: 1
  • Lead Length: 24 1/2 in
  • Usable @ 200V: No
  • Country of Origin (subject to change): Mexico
Feedback Help us improve our product information

Description

Ventilation Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/15 HP, Nameplate RPM 1,060, No. of Speeds 3, Voltage 115V AC, Full Load Amps 1.02, 4.4 in Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Lead Length 24 1/2 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Resilient Ring, Motor Mounting Position Horizontal
