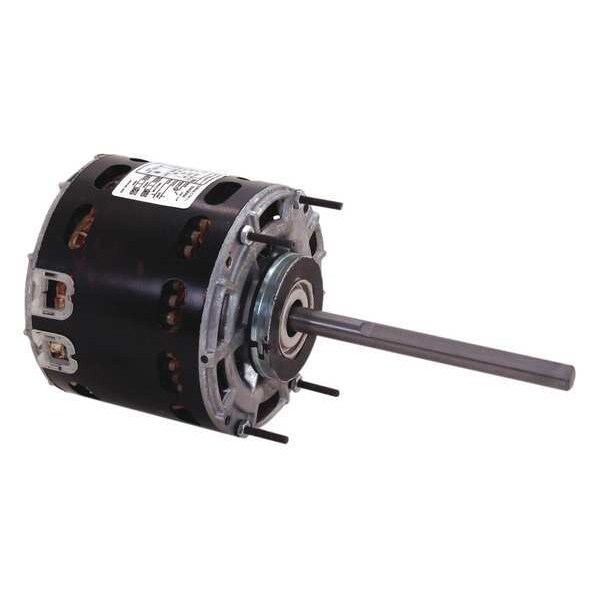

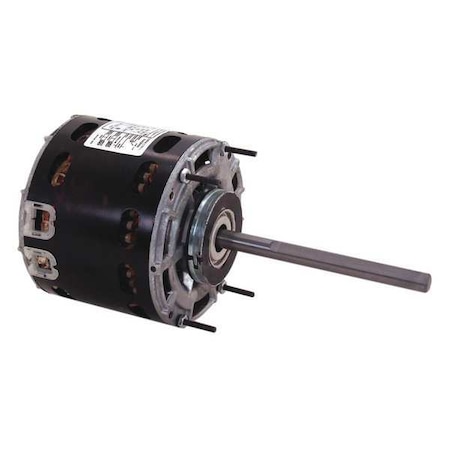

Motor, PSC, 1/30 HP, 1100 RPM, 115V, 42Y, OAO

CENTURY| Zoro #: G1284771| Mfr #: 9643

$133.75 /ea

This item ships free. DetailsStandard ground shipping
This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1284771 Mfr #: 9643
Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240Voltage: 115
Motor Shaft Design: FlatApplication: Blowers, Fans and Air Circulators
Motor Design: Permanent Split CapacitorMax. Ambient Temp.: 40 Degrees C
Item: Direct Drive Blower MotorMotor Enclosure Design: Open Air-Over
Frame: 42YShaft Length: 8"
Hz: 60Nameplate RPM: 1100
Body Dia.: 5"Ins. Class: B
Stud Size: #8-32Phase: 1
Includes: Resilient Mounting RingsCapacitor Required: 2MDV4
Shaft Dia.: 1/2"No. of Speeds: 3
Mounting Stud Pattern: 3-1/4" x 3-1/4"Ring to Ring Center: 4-9/16"
Motor Sub Application: Direct Drive Fan/BlowerMounting Stud Location: Shaft End
HP: 1/30Motor Mounting Type: Stud
Duty: ContinuousMotor Application: HVAC/R
Resilient Ring Dia.: 2-1/2"Motor Bearings: Sleeve
Standards: UL Recognized, CSA CertifiedLength Less Shaft: 4-15/16"
Motor Mounting Position: All AngleMotor Shaft Rotation: CW/CCW
Motor Thermal Protection: AutoMotor Service Factor: 1.00
Full Load Amps: 0.60Country of Origin (subject to change): Mexico

Product Description

Direct Drive Blower Motor, Permanent Split Capacitor Motor Type, Open Air-Over Enclosure, 1/30 HP, 1100 Nameplate RPM, Voltage 115, 0.60 Full Load Amps, 60 Hz, 1 Phase, 42Y Frame, Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Insulation Class B, Duty Continuous, Number of Speeds 3, Mounting Stud, Bearings Sleeve, Thermal Protection Auto, Rotation CW/CCW, Body Dia. 5 In., Length Less Shaft 4-15/16 In., Shaft Dia. 1/2 In., Shaft Length 8 In., Shaft Type Flat
