- Motor, PSC, 1/4 HP, 1075,208-230V, 42Y, OAO
Century

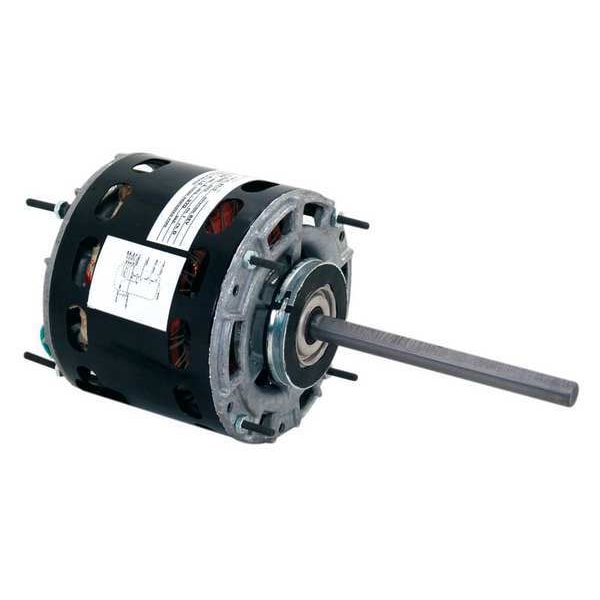

Motor, PSC, 1/4 HP, 1075,208-230V, 42Y, OAO
- Zoro #: G1446295
- Mfr #: 9719
Tap to zoom
Hover or click to zoom
$193.50
- Phase: Single
- Voltage: 208-230V AC
- Includes: Resilient Mounting Ring
This item ships free.
(Sign in or create an account for free shipping on orders over $50)
Total: $193.50
Century #9719 Specifications
- Zoro #: G1446295
- Mfr #: 9719
- Phase: Single
- Voltage: 208-230V AC
- Includes: Resilient Mounting Ring
- No. of Speeds: 3
- Body Dia.: 5 in
- Full Load Amps: 2.00
- Voltage Compatibility: 115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
- Standards: CSA Certified, UL Recognized
- Motor Mounting Type: Ring
- Ring to Ring Center: 5 5/16 in
- Mounting Stud Pattern: 2-5/16 in x 4 in
- Motor Design: Permanent Split Capacitor
- Resilient Ring Dia.: 2 1/2 in
- Motor Sub Application: Direct Drive Fan/Blower
- Motor Thermal Protection: Auto
- Application: Blowers, Fans and Air Circulators
- Motor Shaft Rotation: CW/CCW
- Motor Application: HVAC/R
- Motor Service Factor: 1
- Nameplate RPM: 1,075
- Ins. Class: B
- Capacitor Required: 2MDV4
- Motor Mounting Position: Horizontal
- Bolt Circle Dia.: 4 5/8 in
- Mounting Stud Location: Both Ends
- Frame: 42Y
- Hz: 60 Hz
- Stud Size: #8-32
- Shaft Length: 5 13/16 in
- Duty: Continuous
- Motor Shaft Design: Flat
- Item: Direct Drive Blower Motor
- Motor Bearings: Sleeve
- Motor Enclosure Design: Open Air-Over
- Max. Ambient Temp.: 40 Degrees C
- HP: 1/4
- RPM Range: 1,001-1,100
- Shaft Dia.: 1/2 in
- Length Less Shaft: 5 11/16 in
- Overall Length: 11 1/2 in
- Motor Frame Material: Steel
- Usable @ 208V: Yes
- Number of Shafts: 1
- Weight: 12 lb
- Stud Quantity: 4
- Usable @ 200V: No
- Mounting Holes: 4
- Lead Length: 13 in
- Country of Origin (subject to change): Mexico
Description
Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 HP, Nameplate RPM 1,075, No. of Speeds 3, Voltage 208-230V AC, Full Load Amps 2.00, 42Y Frame, Usable @ 208V Yes, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Lead Length 13 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Resilient Ring, Motor Mounting Position Horizontal
