- Motor, Sh Pole, 1/15 HP, 1000,115V, 42Y, OAO
Shop Alternate Products
This Product is Discontinued
Century

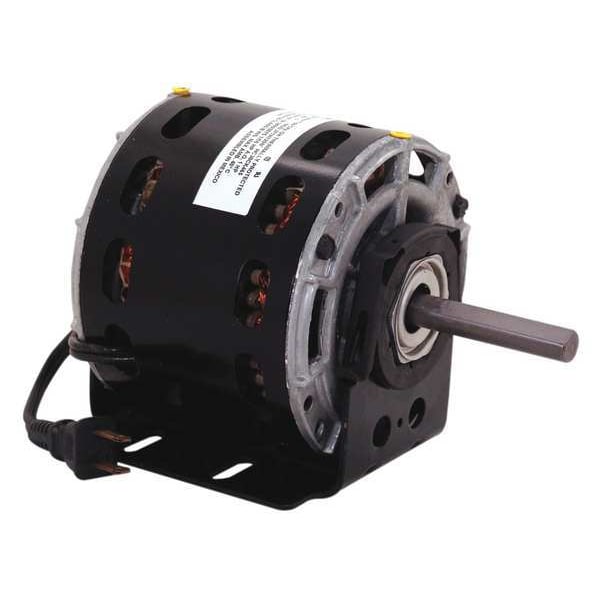

Motor, Sh Pole, 1/15 HP, 1000,115V, 42Y, OAO (Discontinued)
Mfr # 9694
Zoro # G1577116
This Product is Discontinued
Key Features
- Nameplate RPM 1,000
- Includes Resilient Base
- Application Blowers, Fans and Air Circulators
- Motor Shaft Design Flat
- Motor Service Factor 1
Customers Also Purchased
- Brand Century
-
MFR #
9694
-
Zoro #
G1577116
- Country of Origin Mexico
- Category Shaded Pole Blower Motors
Dimensions
Body Dia. | 5 in |
Resilient Ring Dia. | 2 1/2 in |
Length Less Shaft | 4 7/16 in |
Shaft Dia. | 3/8 in |
Shaft Length | 3 11/16 in |
Overall Length | 7 11/16 in |
Lead Length | 17 1/2 in |
Details
Nameplate RPM | 1,000 |
Includes | Resilient Base |
Application | Blowers, Fans and Air Circulators |
Motor Shaft Design | Flat |
Motor Service Factor | 1 |
Frame | 42Y |
RPM Range | 0-1,000 |
Motor Application | HVAC/R |
Motor Shaft Rotation | CCWLE |
No. of Speeds | 1 |
Motor Enclosure Design | Open Air-Over |
Phase | Single |
Capacitor Required | No |
Motor Design | Shaded Pole |
Motor Bearings | Sleeve |
Ring to Ring Center | 4 1/16 in |
Motor Mounting Type | Cradle Base |
Voltage Compatibility | 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC |
Voltage | 115V AC |
Motor Mounting Position | Horizontal |
Motor Thermal Protection | Auto |
Full Load Amps | 3.02 A |
Standards | CSA Certified, UL Recognized |
Hz | 60 Hz |
HP | 1/15 |
Duty | Continuous |
Item | Ventilation Motor |
Ins. Class | A |
Motor Sub Application | Direct Drive Fan/Blower |
Max. Ambient Temp. | 40 Degrees C |
Weight | 5 lb |
Mounting Holes | 4 |
Motor Frame Material | Steel |
Number of Shafts | 1 |
Stud Quantity | 4 |
Usable @ 200V | No |
Usable @ 208V | No |
Shop By | Closeouts |
Mounting | Cradle Base |
Number of Speeds | 1 |
Description
Ventilation Motor, Single Phase, Motor Design Shaded Pole, 1/15 HP, Nameplate RPM 1,000, No. of Speeds 1, Voltage 115V AC, Full Load Amps 3.02 A, 42Y Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class A, Motor Shaft Rotation CCWLE, Max. Ambient Temp. 40 Degrees C, Lead Length 17 1/2 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Number of Shafts 1
