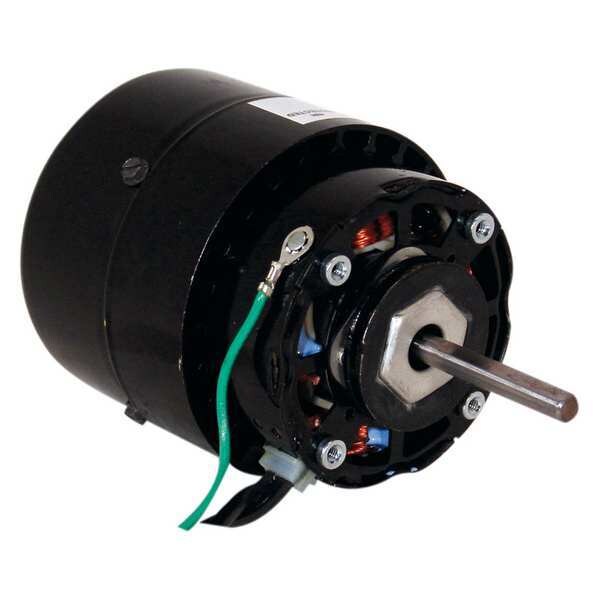

Motor, Sh Pole, 1/40 HP, 18W, 1550, 115V, OAO

CENTURY| Zoro #: G1193157| Mfr #: 9656

$83.95 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1193157 Mfr #: 9656
Motor Service Factor: 1.00Shaft Length: 1-1/4"
Nameplate RPM: 1550Output Watts: 18
HP: 1/40Shaft Dia.: 5/16"
Motor Application: HVAC/RRing Dia.: 1-3/4"
Hz: 60Motor Thermal Protection: Auto
Motor Design: Shaded PoleMax. Ambient Temp.: 40 Degrees C
Motor Enclosure Design: Open Air-OverItem: Unit Bearing Motor
Motor Bearings: SleeveRing to Ring Center: 4-1/2"
Body Dia.: 4"Motor Mounting Position: All Angle
Ins. Class: BMotor Mounting Type: Ring
Motor Sub Application: Refrigerator/FreezerPhase: 1
Overall Length: 6-3/16"Resilient Ring Dia.: 1-3/4"
Length Less Shaft: 4-15/16"Frame: Non-Standard
Voltage: 115Includes: 8/32 Mounting Studs
Full Load Amps: 1.2Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240
Motor Shaft Rotation: CCWSECountry of Origin (subject to change): United States

Product Description

Unit Bearing Motor, Shaded Pole, Open Air-Over, 1/40 HP, 1550 Nameplate RPM, Frame Non-Standard, Voltage 115, Hz 60, 1 Phase, Full Load Amps 1.2, Output Watts 18, Ring Motor Mounting Type, Motor Thermal Protection Auto, Ins. Class B, Motor Service Factor 1.00, Sleeve Motor Bearings, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Overall Length 6-3/16 In., Includes 8/32 Mounting Studs
