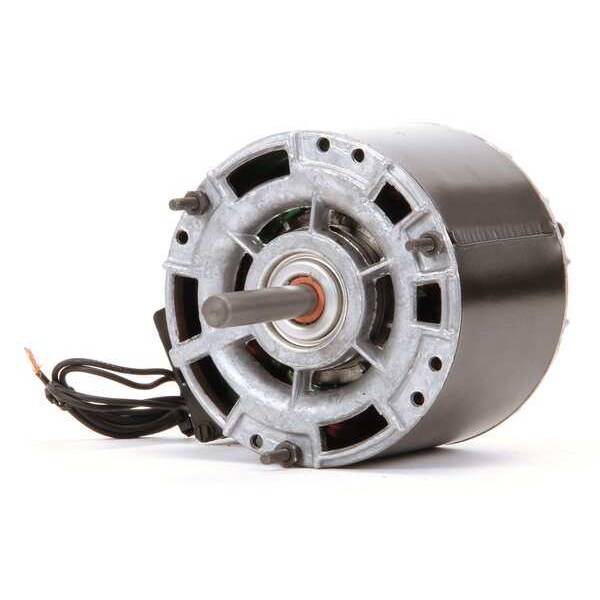

Motor, Sh Pole, 1/6 HP, 1000, 115V, 42Y, OAO

CENTURY| Zoro #: G1148235| Mfr #: BL6411

$104.94 /ea

This item ships free. Details.Standard ground shipping.
Details:
Motor Design: Shaded Pole
Stud Size: #10-32
Motor Application: HVAC/R
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G1148235 Mfr #: BL6411
Motor Design: Shaded PoleStud Size: #10-32
Motor Application: HVAC/RVoltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240
Motor Shaft Rotation: CCWLEMotor Sub Application: Direct Drive Fan/Blower
HP: 1/6Shaft Dia.: 1/2"
Bolt Circle Dia.: 4-5/8"Standards: UL Recognized, CSA Certified
Voltage: 115Application: Blowers, Fans and Air Circulators
Motor Enclosure Design: Open Air-OverNameplate RPM: 1000
Length Less Shaft: 4"Body Dia.: 5"
Item: Direct Drive Blower MotorMotor Mounting Position: Horizontal
Ins. Class: BMotor Shaft Design: Flat
Mounting Stud Location: Shaft EndMax. Ambient Temp.: 40 Degrees C
Motor Service Factor: 1.00Mounting Stud Pattern: 3-1/4" x 3-1/4"
RPM Range: 1001-1100Phase: 1
Hz: 60Motor Bearings: Sleeve
Frame: 42YNo. of Speeds: 1
Capacitor Required: NoShaft Length: 2-1/2"
Full Load Amps: 5.7Motor Thermal Protection: Auto
Motor Mounting Type: StudDuty: Continuous
Country of Origin (subject to change): Mexico

Description

Direct Drive Blower Motor, Shaded Pole Motor Design, Open Air-Over Motor Enclosure Design, 1/6 HP, 1000 Nameplate RPM, Voltage 115, 5.7 Full Load Amps, 60 Hz, 1 Phase, 42Y Frame, Motor Service Factor 1.00, Max. Ambient Temp. 40 Degrees C, Ins. Class B, Duty Continuous, No. of Speeds 1, Motor Mounting Type Stud, Motor Mounting Position Horizontal, Motor Bearings Sleeve, Motor Thermal Protection Auto, Motor Shaft Rotation CCWLE, Length Less Shaft 4 In., Shaft Dia. 1/2 In., Shaft Length 2-1/2 In.
