Century

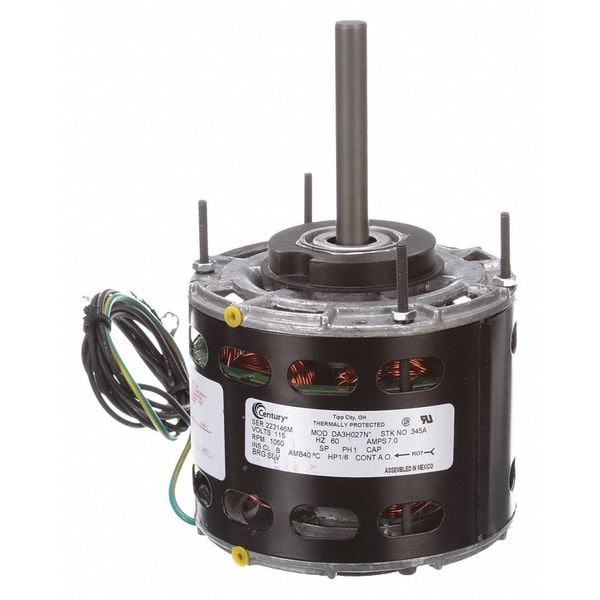

Motor, Sh Pole, 1/6 HP, 1050,115V, 42Y, OAO (Discontinued)
Mfr # 345A
Zoro # G3152335
Free Shipping & Returns
This Product is Discontinued
Key Features
- Mounting Stud Location Shaft End
- Standards CSA, UL
- Motor Shaft Rotation CCWLE
- Frame 42Y
- HP 1/6
Customers Also Purchased
- Brand Century
-
MFR #
345A
-
Zoro #
G3152335
- Country of Origin Mexico
- Category Shaded Pole Blower Motors
Dimensions
Stud Size | #8-32 |
Resilient Ring Dia. | 2 1/2 in |
Shaft Dia. | 1/2 in |
Body Dia. | 5 in |
Bolt Circle Dia. | 4 5/8 in |
Shaft Length | 3 1/4 in |
Length Less Shaft | 4 15/16 in |
Overall Length | 7 11/16 in |
Lead Length | 30 in |
Details
Mounting Stud Location | Shaft End |
Standards | CSA, UL |
Motor Shaft Rotation | CCWLE |
Frame | 42Y |
HP | 1/6 |
Motor Mounting Position | Horizontal |
Motor Enclosure Design | Open Air-Over |
Includes | Resilient Mounting Ring |
Motor Service Factor | 1 |
Capacitor Required | No |
Hz | 60 Hz |
Voltage | 115V AC |
Item | Direct Drive Blower Motor |
RPM Range | 1,001-1,100 |
Max. Ambient Temp. | 40 Degrees C |
Motor Design | Shaded Pole |
Motor Application | HVAC/R |
Ring to Ring Center | 4 9/16 in |
Voltage Compatibility | 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC |
Ins. Class | B |
Nameplate RPM | 1,050 |
Motor Thermal Protection | Auto |
Phase | Single |
Full Load Amps | 7.00 A |
Application | Room Air Conditioners, Unit Heaters, Condensers, Furnace Blowers, A Wide Range of Other Shaft Mounted Fan and Blower Equipment |
Motor Mounting Type | Ring |
Duty | Continuous |
No. of Speeds | 1 |
Motor Shaft Design | Flat |
Mounting Stud Pattern | 2-5/16 in x 4 in |
Motor Sub Application | Direct Drive Fan/Blower |
Motor Bearings | Sleeve |
Usable @ 200V | No |
Number of Shafts | 1 |
Stud Quantity | 4 |
Motor Frame Material | Steel |
Mounting Holes | (4) #8-32 |
Weight | 10 lb |
Usable @ 208V | No |
Mounting | Ring |
Number of Speeds | 1 |
Description
Direct Drive Blower Motor, Single Phase, Motor Design Shaded Pole, 1/6 HP, Nameplate RPM 1,050, No. of Speeds 1, Voltage 115V AC, Full Load Amps 7.00 A, 42Y Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CCWLE, Max. Ambient Temp. 40 Degrees C, Lead Length 30 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring, Motor Mounting Position Horizontal, Number of Shafts 1
