- Motor, Split Ph, 1/4 HP, 1725,115V, 56CZ, ODP
Century

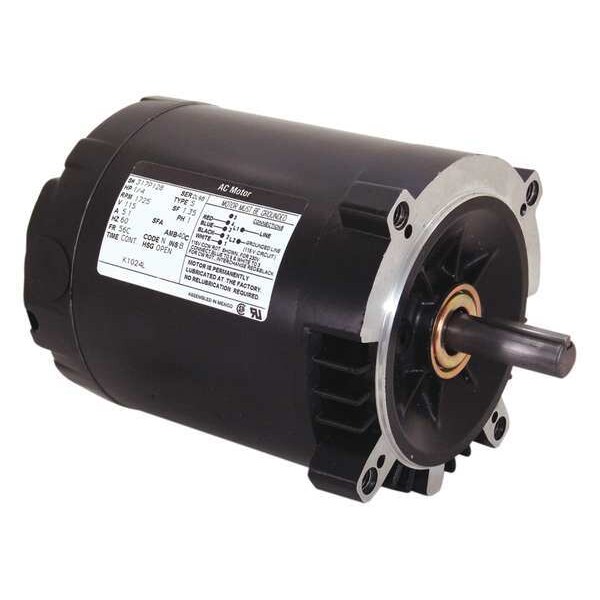

Motor, Split Ph, 1/4 HP, 1725,115V, 56CZ, ODP
- Zoro #: G1836414
- Mfr #: F392
Tap to zoom
Hover or click to zoom
$172.22
- Motor Design: Split-Phase
- Item: C-Frame Motor
- Motor Sub Application: Aeration Fan
This item ships free.
(Sign in or create an account for free shipping on orders over $50)
Total: $172.22
Century #F392 Specifications
- Zoro #: G1836414
- Mfr #: F392
- Motor Design: Split-Phase
- Item: C-Frame Motor
- Motor Sub Application: Aeration Fan
- Motor Enclosure Design: Open Dripproof
- No. of Speeds: 1
- Body Dia.: 6 1/2 in
- Duty: Continuous
- Standards: CSA Certified, UL Recognized
- RPM Range: 1,701-1,800
- Phase: Single
- Ins. Class: B
- Length Less Shaft: 7 1/2 in
- Max. Ambient Temp.: 40 Degrees C
- HP: 1/4
- Motor Service Factor: 1.35
- Nameplate RPM: 1,725
- Voltage: 115V AC
- Motor Shaft Design: Keyed
- Full Load Amps: 4.1
- Hz: 60 Hz
- Shaft Length: 2 7/16 in
- Application: C Face Vent, Designed for Use On Commercial and Industrial Ventilation Systems
- Motor Thermal Protection: Auto
- Capacitor Required: No
- Motor Bearings: Ball
- Motor Mounting Type: Face
- Motor Shaft Rotation: CW/CCW
- Shaft Dia.: 5/8 in
- Frame: 56CZ
- Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
- Motor Mounting Position: All Angle
- Motor Application: HVAC/R
- Usable @ 208V: No
- Duty Cycle: Continuous
- Mounting Holes: (4) 3/8 in-16
- Number of Shafts: 1
- Motor Frame Material: Steel
- Weight: 13 lb
- Usable @ 200V: No
- Stud Quantity: 4
- Overall Length: 9 7/8 in
- Country of Origin (subject to change): Mexico
Description
C-Frame Motor, Single Phase, Motor Design Split-Phase, 1/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, Full Load Amps 4.1, 56CZ Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz, Motor Service Factor 1.35, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Dripproof, Motor Mounting Type Face, Motor Mounting Position All Angle, Number of Shafts 1
