- Pool Pump Motor, Permanent Split Capacitor, 1/2, 1/15 HP, 56C Frame, 3,450/1,725 Nameplate RPM
Shop Alternate Products
This Product is Discontinued
Century

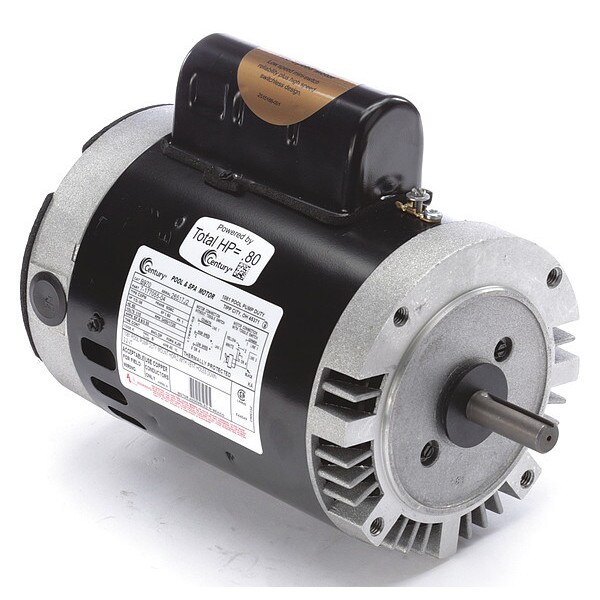

Pool Pump Motor, Permanent Split Capacitor, 1/2, 1/15 HP, 56C Frame, 3,450/1,725 Nameplate RPM (Discontinued)
Mfr # B970
Zoro # G0520116
Free Shipping & Returns
This Product is Discontinued
Key Features
- Motor Design Permanent Split Capacitor
- Motor Enclosure Design Open Dripproof
- HP 1/15, 1/2
- RPM Range 3,001-3,600
- Motor Service Factor 1.6
Customers Also Purchased
- Brand Century
-
MFR #
B970
-
Zoro #
G0520116
- Country of Origin Mexico
- Category Pool Pump Motors
Dimensions
Shaft Length | 2 1/8 in |
Shaft Dia. | 5/8 in |
Length Less Shaft | 9 3/4 in |
Body Dia. | 6.5 in |
Overall Length | 11 13/16 in |
Height | 11 in |
Shaft Dia. (In.) | 5/8 |
Details
Item | Pool Pump Motor |
Motor Design | Permanent Split Capacitor |
Motor Enclosure Design | Open Dripproof |
HP | 1/15, 1/2 |
RPM Range | 3,001-3,600 |
Motor Service Factor | 1.6 |
Nameplate RPM | 3,450/1,725 |
Frame | 56C |
Motor Shaft Rotation | CCWSE |
Phase | Single |
Voltage | 115V AC |
Motor Mounting Type | Face |
Full Load Amps | 8.8/3.6 |
Voltage Compatibility | 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC |
Ins. Class | B |
Finish | Black |
Motor Flange Material | Aluminum |
Motor Efficiency Group | Standard Efficient |
Hz | 60 Hz |
Standards | CSA (LR43341/LR94643), UL (E44549/E25022), UL 1081 Approvable |
Shaft | Keyed |
Motor Thermal Protection | Auto |
Shaft Material | AISI 1215 Steel |
Motor Sub Application | Pool and Spa Pump |
Ambient Temperature | 40 Degrees C |
Motor Application | Pump |
Motor Bearings | Ball |
Max. Ambient Temp. | 40 Degrees C |
No. of Speeds | 2 |
Duty Cycle | Continuous |
Max. SF Amps | 8.8 |
Motor Mounting Position | Horizontal |
Motor Frame Material | Steel |
Motor Shaft Design | Keyed |
Weight | 24 lb |
Usable @ 208V | No |
Usable @ 200V | No |
Description
Pool Pump Motor, Body Dia. 6.5 in, Duty Cycle Continuous, Finish Black, Frame 56C, Hz 60 Hz, Full Load Amps 8.8/3.6, Height 11 in, HP 1/15, 1/2, Ins. Class B, Length Less Shaft 9 3/4 in, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 8.8, Motor Application Pump, Motor Bearings Ball, Motor Design Permanent Split Capacitor, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
- This item has been restricted from sale in the following states: CA, NY
