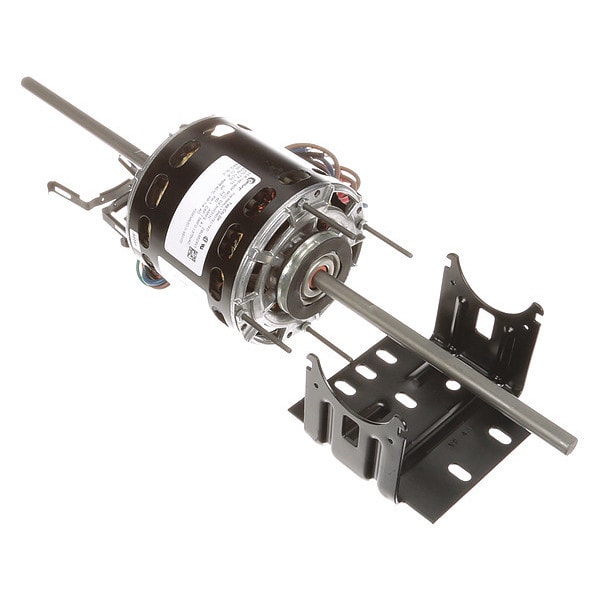

Room Air Cond Mtr, PSC, OAO, 1075 RPM

CENTURY| Zoro #: G1617217| Mfr #: DBL6524V1

$204.04 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1617217 Mfr #: DBL6524V1
Motor Service Factor: 1.00Motor Shaft Rotation: CCWLE
Motor Bearings: SleevePhase: 1
Motor Sub Application: Room Air ConditionerMotor Application: HVAC/R
Motor Enclosure Design: Open Air-OverItem: Room Air Conditioner Motor
HP: 1/4Motor Thermal Protection: Auto
Motor Design: Permanent Split CapacitorShaft Dia.: 1/2"
Duty: ContinuousResilient Ring Dia.: 2-1/2"
Capacitor Required: 2MDV6Ring to Ring Center: 5-1/4"
Nameplate RPM: 1075Lead Length: 26"
Full Load Amps: 4.1Mounting Stud Pattern: 3-1/4" x 3-1/4"
Max. Ambient Temp.: 40 Degrees CStud Size: #8-32 x 1-5/8"
Length Less Shaft: 5-11/16"Bolt Circle Dia.: 4-5/8"
Body Dia.: 5"Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240
Frame: 42YIns. Class: B
Standards: UL, CSAVoltage: 115
Motor Mounting Type: Cradle BaseShaft Length: 8"
No. of Speeds: 4Hz: 60
Country of Origin (subject to change): Mexico

Product Description

Room A/C Motor, Permanent Split Capacitor, Open Air Over, HP 1/4, RPM 1075, Number of Speeds 4, Volts 115, Full Load Amps 4.1, NEMA 42Y Frame, Body Dia 5 In, Service Factor 1.0, 60 Hz, Cradle Base/Stud Mount, Sleeve Bearings, Auto Thermal Protection, Shaft Dimensions 1/2 x 81/2 EA In, Rotation CCWLE, Ambient 40 C, Insulation Class B, Continuous Duty, Resilient Ring Dia 2 1/2 In, Stud Pattern 3 1/4 In, Length Less Shaft 5 11/16 In, Lead Length 26 In, 1 Phase, Capacitor 2GE78 or G3132534 Required
