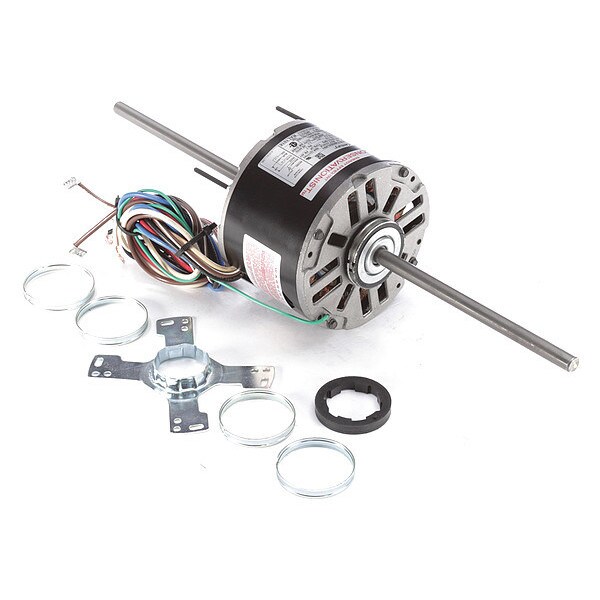

Room Air Cond Mtr, PSC, OAO, 1075 RPM

CENTURY |Zoro #: G1808633|Mfr #: RAL1016

$133.95 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1808633 Mfr #: RAL1016
Motor Service Factor: 1.00Motor Bearings: Sleeve
Phase: 1Motor Sub Application: Room Air Conditioner
Motor Application: HVAC/RMotor Enclosure Design: Open Air-Over
Item: Room Air Conditioner MotorHP: 1/6
Motor Thermal Protection: AutoMotor Design: Permanent Split Capacitor
Shaft Dia.: 1/2"Duty: Continuous
Lead Length: 36"Full Load Amps: 2.2
Stud Size: #8-32 x 1-5/8"Max. Ambient Temp.: 40 Degrees C
Bolt Circle Dia.: 5-1/7"Length Less Shaft: 4-3/8"
Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240Body Dia.: 5-5/8"
Ins. Class: AFrame: 48Y
Motor Shaft Rotation: CCWLEStandards: UL, CSA
Voltage: 115Motor Mounting Type: Stud
Shaft Length: 8-1/8" and 7-1/2"No. of Speeds: 3
Hz: 60/50Resilient Ring Dia.: 2-1/4"
Capacitor Required: 2MDV4Nameplate RPM: 1075
Mounting Stud Pattern: 3-5/8" x 3-5/8"Country of Origin (subject to change): Mexico

Product Description

Room Air Conditioner Motor, Permanent Split Capacitor, Open Air-Over, Continuous, 1/6 HP, 1075 Nameplate RPM, Voltage 115, 48Y Frame, Motor Service Factor 1.00, 60/50 Hz, Full Load Amps 2.2, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, No. of Speeds 3, CCWLE Motor Shaft Rotation, 1 Phase, Stud Motor Mounting Type, Sleeve Motor Bearings, Body Dia. 5-5/8 In., Length Less Shaft 4-3/8 In., Shaft Dia. 1/2 In., Shaft Length 8-1/8 In. and 7-1/2 In.
