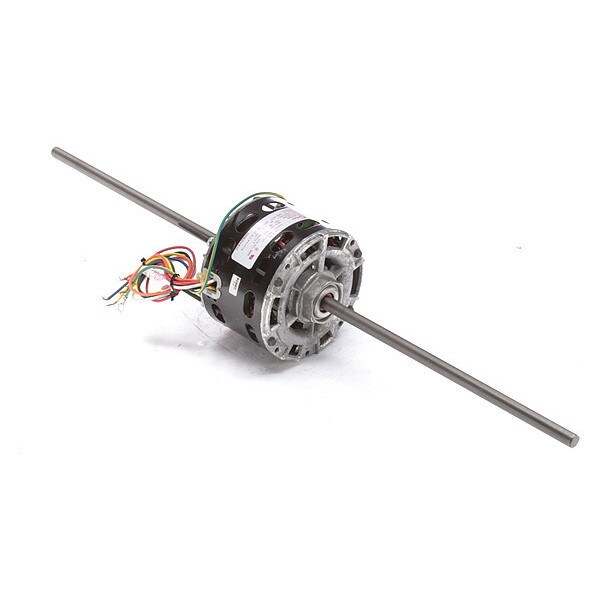

Room Air Cond Mtr, Shad Pol, OAO, 1000 RPM

CENTURY| Zoro #: G2469695| Mfr #: 9689

$104.95 /ea

qty
This item ships free. Details.Standard ground shipping.
Details:
Ins. Class: B
Voltage: 208-230
Motor Mounting Type: Stud
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G2469695 Mfr #: 9689
Ins. Class: BVoltage: 208-230
Motor Mounting Type: StudVoltage Compatibility: 115/208-230, 208-230, 208-240
Stud Size: #8-32 x 1-5/8"Capacitor Required: No
Resilient Ring Dia.: 2-1/4"Frame: 42Y
Phase: 1Motor Thermal Protection: Auto
Motor Application: HVAC/RBolt Circle Dia.: 4-5/8"
HP: 1/10Item: Room Air Conditioner Motor
Motor Shaft Rotation: CCWLELead Length: 36"
Motor Shaft Design: FlatNameplate RPM: 1000
No. of Speeds: 5Duty: Continuous
Motor Service Factor: 1.00Motor Enclosure Design: Open Air-Over
Body Dia.: 5"Max. Ambient Temp.: 40 Degrees C
RPM Range: 1001-1100Hz: 60
Motor Bearings: SleeveShaft Dia.: 1/2"
Shaft Length: 11" and 10-1/2"Length Less Shaft: 4"
Ring to Ring Center: 4 to 5-1/8"Mounting Stud Pattern: 2-5/16" x 4"
Motor Sub Application: Room Air ConditionerMotor Design: Shaded Pole
Full Load Amps: 2.3Standards: UL, CSA
Country of Origin (subject to change): Mexico

Description

Room Air Conditioner Motor, Shaded Pole, Open Air-Over, Continuous, 1/10 HP, 1000 Nameplate RPM, Voltage 208-230, 42Y Frame, Motor Service Factor 1.00, 60 Hz, Full Load Amps 2.3, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, No. of Speeds 5, CCWLE Motor Shaft Rotation, 1 Phase, Stud Motor Mounting Type, Sleeve Motor Bearings, Body Dia. 5 In., Length Less Shaft 4 In., Motor Shaft Design Flat, Shaft Dia. 1/2 In., Shaft Length 11 In. and 10-1/2 In.
