Century

Split-Phase Belt Drive Motor, 1/2 HP, 56Z Frame, 115V AC Voltage, 1,725 Nameplate RPM

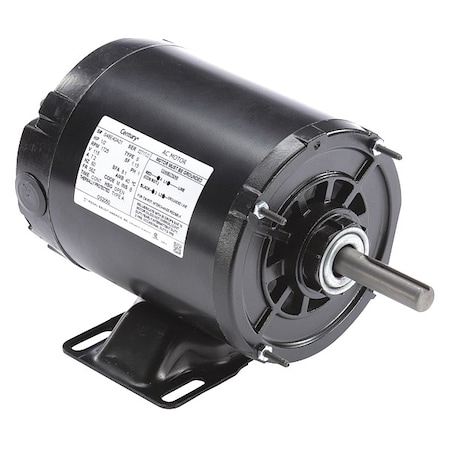

Century Split-Phase Belt Drive Motor,  1/2 HP,  56Z Frame,  115V AC Voltage,  1,725 Nameplate RPM OS2050
Tap to zoom
Hover or click to zoom
$235.10
  • Item: Belt Drive Motor
  • Motor Design: Split-Phase
  • Motor Enclosure Design: Open
See full product details
This item ships free.

Total: $235.10

Century #OS2050 Specifications

  • Item: Belt Drive Motor
  • Motor Design: Split-Phase
  • Motor Enclosure Design: Open
  • HP: 1/2
  • No. of Speeds: 1
  • RPM Range: 1,701-1,800
  • Nameplate RPM: 1,725
  • Voltage: 115V AC
  • Frame: 56Z
  • Motor Mounting Type: Rigid Base
  • Shaft Dia.: 5/8 in
  • Motor Thermal Protection: Auto
  • Motor Service Factor: 1.15
  • Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
  • Phase: Single
  • Motor Application: HVAC/R
  • Motor Sub Application: Belt Drive Fan/Blower
  • Motor Mounting Position: All Angle
  • Frame Material: Rolled steel
  • Length Less Shaft: 8 1/4 in
  • Max. Ambient Temp.: 40 Degrees C
  • Nominal Efficiency: 63 %
  • Motor Shaft Rotation: CW/CCW
  • Motor Bearings: Ball
  • Standards: CSA
  • Includes: 5/8 in Shaft Adapter/Key
  • Full Load Amps: 7.2
  • Mounting Stud Pattern: 3 5/8 in x 3 5/8 in
  • Footnotes: 26, 342
  • Ins. Class: B
  • Motor Frame Material: Steel
  • Overall Length: 10 5/8 in
  • Body Dia.: 5 5/8 in
  • Shaft Length: 2 3/8 in
  • Hz: 60
  • Duty: Continuous
  • Usable @ 208V: No
  • Usable @ 200V: No
  • Duty Cycle: Continuous
  • Weight: 18 lb
  • Country of Origin (subject to change): Mexico

Description

Belt Drive Motor, Single Phase, Motor Design Split-Phase, 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, 7.2 Full Load Amps, 56Z Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Frame Material Steel
