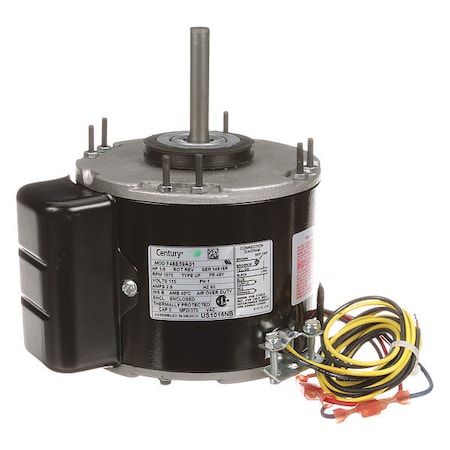

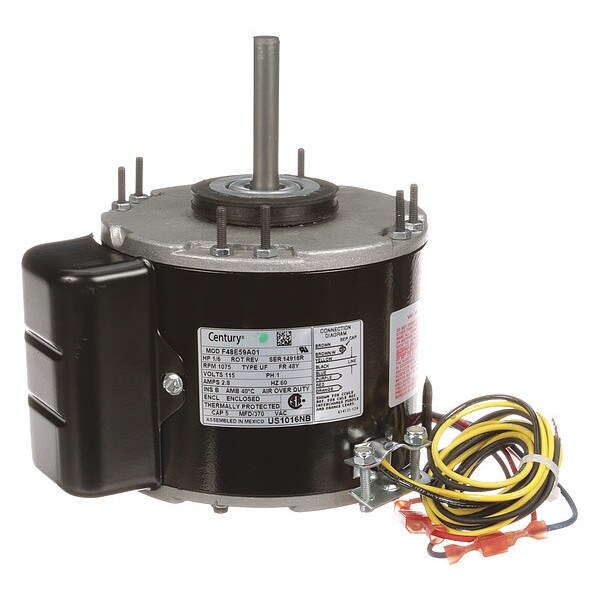

UnitHtr Motor, 1/6,1075,115, 48Y, Ring/Stud (Discontinued)
Mfr # US1016NB
Zoro # G0334634
Free Shipping & Returns
This Product is Discontinued
Key Features
- Motor Design Permanent Split Capacitor
- HP 1/6
- Nameplate RPM 1,075
- Voltage 115V AC
- Frame 48Y
- Brand Century
- MFR #US1016NB
- Zoro #G0334634
- Country of OriginMexico
- Category Unit Heater Motors
Dimensions
Overall Length | 7 7/8 in |
Ring Dia. | 2 1/2 in |
Shaft Dia. | 1/2 in |
Shaft Length | 3 in |
Body Dia. | 5 5/8 in |
Length Less Shaft | 5 1/2 in |
Bolt Circle Dia. | 5 1/8 in |
Lead Length | 58 in |
Stud Size | #8-32 |
Resilient Ring Dia. | 2 1/2 in |
Details
Item | Unit Heater Motor |
Motor Design | Permanent Split Capacitor |
HP | 1/6 |
Nameplate RPM | 1,075 |
Voltage | 115V AC |
Frame | 48Y |
Motor Enclosure Design | Totally Enclosed |
Motor Mounting Type | Ring |
RPM Range | 1,001-1,100 |
Motor Application | HVAC/R |
Hz | 60 Hz |
Application | Unit Heaters and Other Shaft-mounted Fan and Blower Equipment in Dusty, Dirty, Noncombustible Environments |
Mounting Stud Pattern | 3-5/8 in x 3-5/8 in, 4-5/8 in x 2-5/16 in |
No. of Speeds | 1 |
Voltage Compatibility | 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC |
Ring to Ring Center | 4 15/16 in |
Motor Shaft Rotation | CW/CCW |
Motor Service Factor | 1 |
Motor Sub Application | Unit Heater |
Full Load Amps | 2.1 A |
Standards | CSA Certified, UL Recognized |
Max. Ambient Temp. | 40 Degrees C |
Motor Thermal Protection | Auto |
Ins. Class | B |
Phase | Single |
Duty | Continuous |
Motor Bearings | Sleeve |
Includes | Extended Studs, Permanent Split Capacitor, Resilient Rings |
Capacitor Required | Included |
Mounting Holes | (4) #8-32 |
Motor Frame Material | Steel |
Weight | 11 lb |
Motor Mounting Position | Horizontal |
Duty Cycle | Continuous |
Conduit Box Location | Exterior |
Motor Shaft Design | Flat |
Usable @ 200V | No |
Stud Quantity | 4 |
Number of Shafts | 1 |
Usable @ 208V | No |
Conduit Box Position | F3 |
Number of Speeds | 1 |
Ambient Temperature | 40 Degrees C |
Mounting | Stud |
Description
Unit Heater Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/6 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 115V AC, Full Load Amps 2.1 A, 48Y Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Lead Length 58 in, Motor Enclosure Design Totally Enclosed, Motor Mounting Type Ring, Motor Mounting Position Horizontal
