  6. AC Gearmotor, 72.0 in.-lb. Max. Torque, 6 Nameplate RPM, 115 V AC Voltage, 1 Phase

This item is Discontinued.

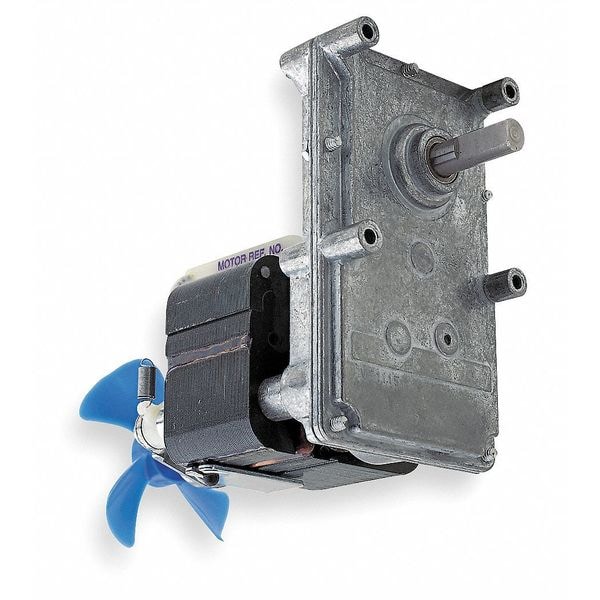

Dayton AC Gearmotor, 72.0 in.-lb. Max. Torque, 6 Nameplate RPM, 115 V AC Voltage, 1 Phase 4Z148

AC Gearmotor, 72.0 in.-lb. Max. Torque, 6 Nameplate RPM, 115 V AC Voltage, 1 Phase (Discontinued)

  • Mfr # 4Z148
  • Zoro # G1703947
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4Z148
Zoro #
G1703947
UPC #
190735340110
Country of Origin
United States

Dimensions

Length Less Shaft
4-1/2"
Shaft Length (Dimension V)
.75"
Shaft Dia. (Dimension U)
3/8"
Dimension L
5"

Details

Item
AC Gearmotor
Gearmotor Voltage
115 V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
72.0 in.-lb.
Gearmotor Shaft Type
Single
Gearmotor Shaft Orientation
Parallel
Nameplate RPM
6
Gearmotor Enclosure
Open
Gearmotor Rotation
CW
Gearmotor Brake Type
Magnetic
Gearmotor Mounting Position
All Angle
Full Load Amps
1.4
Standards
UL Recognized
Input HP
1/60
Housing
Die Cast Zinc
Voltage
115
Overhung Load
7 lb.
Gear Material
Phenolic, powdered metal, steel or delrin
Enclosure
Open
Shaft Orientation
Parallel
Thermal Protection
None
Motor Type
Shaded pole
Application
Vending Machines and Valve Actuators
Gear Type
Helical First Stage
Hz
60
Rotation
CW
Phase
1
Gear Case Material
Die Cast Zinc
RPM Range
0 to 15
Brake
Magnetic
Lubrication
Grease filled
Starting Torque
72 in.-lb.
Mounting
All Position
Insulation Class
b
Gears
Phenolic/Steel
Gear Ratio
525:1
Bearings
Bronze Sleeve or Needle

Description

AC Gearmotor, Motor Type Shaded Pole, Rotation CW, Gear Ratio 525:1, Shaft Orientation Parallel, Application Vending Machines and Valve Actuators
