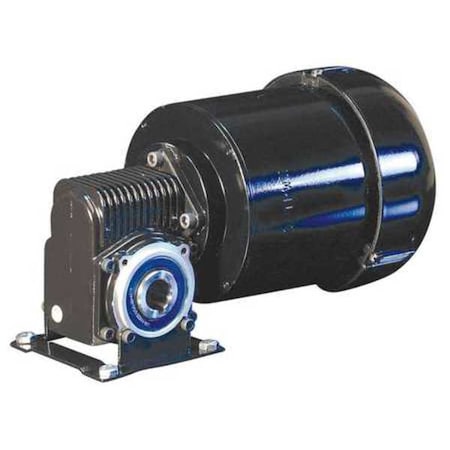

AC Gearmotor, 76.0 in-lb Max. Torque, 124 RPM Nameplate RPM, 230V AC Voltage, 3 Phase

Hover or click to zoom Tap to zoom
Key Features
  • Item: AC Gearmotor
  • Gearmotor Voltage: 230V AC
  • Gearmotor Phase: 3
  • Gearmotor Type: AC Gearmotor
  • Max. Torque: 76.0 in-lb
  • Gearmotor Shaft Type: Hollow
  • Gearmotor Shaft Orientation: Right Angle
  • Nameplate RPM: 124 RPM
See full product details
$762.92
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Specifications

Dimensions

Length Less Shaft 10 17/50 in
Keyway Size Type 3/16 sq in x 1 in
Keyway Size 3/16" Square x 1"
Shaft Length (Dimension V) 1.32 in

Details

Item AC Gearmotor
Gearmotor Voltage 230V AC
Gearmotor Phase 3
Gearmotor Type AC Gearmotor
Max. Torque 76.0 in-lb
Gearmotor Shaft Type Hollow
Gearmotor Shaft Orientation Right Angle
Nameplate RPM 124 RPM
Gearmotor Enclosure Totally Enclosed Fan-Cooled
Gearmotor Rotation CW/CCW
Gearmotor Brake Type None
Gearmotor Mounting Position All Angle
Full Load Amps 0.75
Standards UL Recognized
Input HP 1/4 hp
Gears Hardened Steel Worm, Bronze Gear
Gear Type Worm
Enclosure TEFC
Bearings Double Shielded Ball
Overhung Load 300 lb

Description

AC Gearmotor, Gearmotor Voltage 230V AC, 3 Gearmotor Phase, Max. Torque 76 in-lb, Hollow Gearmotor Shaft Type, Gearmotor Shaft Orientation Right Angle, Gearmotor Rotation CW/CCW, Nameplate RPM 124 RPM, Totally Enclosed Fan-Cooled Gearmotor Enclosure, All Angle Gearmotor Mounting Position, 60/50 Hz Hz, Overhung Load 300 lb, Input HP 1/4 hp, Gear Ratio 13:1, Full Load Amps 0.75, Insulation Class F, Thermostat Thermal Protection, Motor Type 3-Phase, Powder Coated Finish, Die Cast Aluminum Housing
