Dayton

AC Mtr, PSC, TEFC, 1/4 HP, 1600 rpm

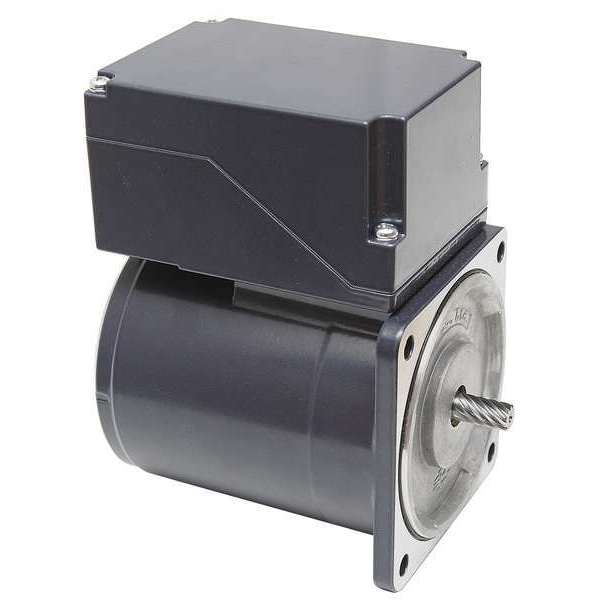

Dayton AC Mtr, PSC, TEFC, 1/4 HP, 1600 rpm 23L407
Tap to zoom
Hover or click to zoom
$314.70
  • Item: AC Gearmotor Component Motor
  • Nameplate RPM: 1600
  • Length Less Shaft: 6 13/32 in
See full product details
This item ships free.

Total: $314.70

Dayton #23L407 Specifications

  • Item: AC Gearmotor Component Motor
  • Nameplate RPM: 1600
  • Length Less Shaft: 6 13/32 in
  • Full Load Amps: 2.85 A
  • Standards: UL Recognized, CSA Certified, CE
  • Motor Bearings: Ball
  • Shaft Length: 1 in
  • HP: 1/4
  • Motor Design: Permanent Split Capacitor
  • Mounting Stud Location: Shaft End
  • Max. Ambient Temp.: 40 Degrees C
  • Hz: 60
  • Ins. Class: B
  • Motor Enclosure Design: Totally Enclosed Fan-Cooled
  • Motor Thermal Protection: None
  • Motor Service Factor: 1.0
  • RPM Range: 1501-1600
  • Overall Length: 7 7/16 in
  • Phase: 1
  • Stud Quantity: 4
  • Includes: 40.0MFD Capacitor
  • Shaft Dia.: 1/2 in
  • Motor Mounting Type: Face
  • Voltage: 115
  • Motor Shaft Rotation: CW/CCW
  • Shop By: Closeouts
  • Country of Origin (subject to change): Korea, Republic of

Description

AC Gearmotor Component Motor, Permanent Split Capacitor, Totally Enclosed Fan-Cooled, 1/4 HP, Nameplate RPM 1600, Voltage 115, 60 Hz, 1 Phase, Full Load Amps 2.85 A, Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Ball Motor Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Length Less Shaft 6 13/32 in, Shaft Dia. 1/2 in, Shaft Length 1 in

Restrictions and Compliance

  • This item has been restricted from sale in the following states: CA
