This item is Discontinued.

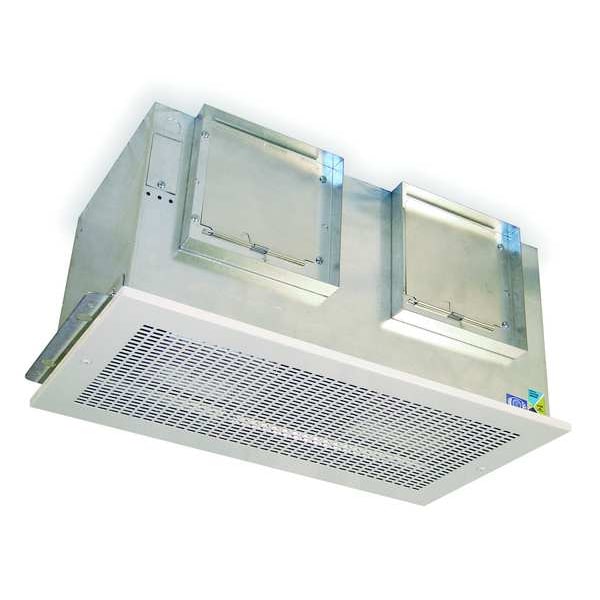

Dayton Ceiling Ventilator, 700 CFM, 115 V 5AE76

Ceiling Ventilator, 700 CFM, 115 V (Discontinued)

  • Mfr # 5AE76
  • Zoro # G0773656
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
5AE76
Zoro #
G0773656
UPC #
190735341940
Country of Origin
United States

Dimensions

Housing Length
23 5/8 in
Housing Height
11 5/8 in
Discharge Height
8 in
Dimension B
11 5/8 in
Dimension A
23 5/8 in
Housing Width
11 5/8 in
Dimension D
19 1/2 in
Grille Length
25 in
Dimension E
8 in
Discharge Width
19 1/2 in
Grille Width
13 1/2 in
Inlet Width
19 1/2 in
Inlet Height
8 in
Overall Width
11 5/8 in
Overall Height
11 5/8 in
For Cut-Out Length
23 7/8 in
Overall Depth
23 5/8 in
Profile Width Family
Double-Wide
Profile Height Family
High
For Cut-Out Width
11 7/8 in
Duct Height
8 in
Duct Width
19 1/2 in
Grille LxW
25 in x 13 1/2 in
Duct HxW
8 in x 19 1/2 in
Overall HxWxD
11 5/8 in x 11 5/8 in x 23 5/8 in

Details

Item
Ceiling Ventilator
Number of Speeds
1
Includes
Backdraft Damper, Mounting Brackets
Max. Inlet Temp.
104 Degrees F
Full Load Amps
3.20
Voltage
115V AC
Phase
1
Motor Insulation
Class B
Standards
AMCA, cUL Listed, UL Listed
CFM @ 0.500-In. SP
649
CFM @ 0.100-In. SP
729
CFM @ 0.250-In. SP
700
Speed Control
48C172
CFM @ 0.375-In. SP
679
CFM @ 0.000-In. SP
757
Singlewide / Doublewide
Doublewide
Sones @ 0.100-In. SP @ 5 Ft.
5.0
For Use With
General Ventilation Applications
Watts
350 W
Recommended Accessories
48C172
Sones @ 0.125-In. SP @ 5 Ft.
5.0
Insulated
Yes
Motor RPM
1100
CFM @ 0.875-In. SP
494
Sones @ 0.250-In. SP @ 5 Ft.
5.3
Motor Type
Permanent Split Capacitor
Wheel Material
Galvanized Steel
Grille Color
White
Sones @ 0.000-In. SP @ 5 Ft.
5.0
Hz
60
CFM @ 0.125-In. SP
723
CFM @ 0.625-In. SP
613
Mounting Position
Ceiling, Horizontal or Vertical
CFM @ 0.750-In. SP
560
CFM @ 1.000-In. SP
396
Housing Material
Steel
Motor Enclosure
Open
Grille Material
Polystyrene
Sensor Type
None
Noise Level @ 0.125 in SP @ 5 ft
5 sones
Duct Shape
Rectangular
Includes Grill
Yes
Frequency
60 Hz
Noise Level @ 0.100 in SP @ 5 ft
5 sones
Discharge Direction
Horizontal and Vertical
Lighted
Without Light
Wattage
350 W
Exhaust Airflow @ 0.250 in SP
700 cfm
Maximum Inlet Temperature
104 Degrees F
Blower Wheel Material
Steel
Vent Design
Ducted
Maximum Airflow
757 cfm
Exhaust Airflow @ 0.000 in SP
757 cfm
Nameplate Voltage
115V AC
Maximum Coverage Area
600 sq ft
Noise Level @ 0.250 in SP @ 5 ft
5.3 sones
Exhaust Airflow @ 0.100 in SP
729 cfm
Full Load Current
3.5 A
Mounting Orientation
Horizontal, Vertical
Noise Level @ 0.000 in SP @ 5 ft
5 sones
Blower Wheel Curve
Forward
Motor Speed
1,100 RPM
Heater
Without Heater
Maximum Noise Level
6.5 sones
Housing Finish
Galvanized
Grille Type
Plastic
Nominal Voltage
115V AC

Description

Ceiling Ventilator, Discharge Direction Horizontal and Vertical, Duct Shape Rectangular, Housing Finish Galvanized, Housing Material Steel, Heater Without Heater, Includes Backdraft Damper, Mounting Brackets, Mounting Location Ceiling, Maximum Airflow 757 cfm, Exhaust Airflow @ 0.100 in SP 729 cfm, Exhaust Airflow @ 0.000 in SP 757 cfm, Maximum Noise Level 6.5 sones, Noise Level @ 0.100 in SP @ 5 ft 5 sones, Maximum Coverage Area 600 sq ft, Number of Speeds 1, Overall Depth 23 5/8 in
