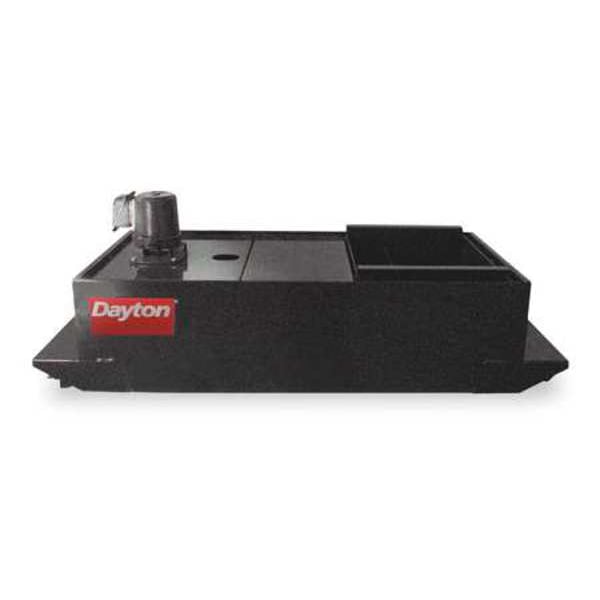

Pumping System, Tank 21 Gal

DAYTON| Zoro #: G1686876| Mfr #: 1XLL3

$883.95 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1686876 Mfr #: 1XLL3
Replaces Gusher Model: -Shaft Seal: -
GPM of Water @ 1 Ft. of Head: -Replaces Graymills Model: -
Max. Temp.: 180 Degrees FReplaces Brown/Sharp Stock No.: -
GPM of Oil 500 SSU @ Max. Ft. Head: -Max. Suction Lift (Ft.): -
CFM: -Shaft Material: Steel
Application: Machine Tool Coolants, Light OilsGPM of Water @ Max. Ft. Head: -
GPM of Water @ 50 Ft. of Head: -Elastomer: -
Body Material: Cast IronItem: Pumping System
Type: Pump/TankIncludes: Chip Bowl
GPM of Oil 500 SSU @ 18 Ft. of Head: -GPM of Water @ 23 Ft. of Head: -
Impeller Material: PlasticGPH of Water @ 2 Ft. of Head: 660
HP: 1/8GPM of Oil 500 SSU @ 15 Ft. of Head: -
GPM of Water @ 21 Ft. of Head: -Width (In.): 16
GPH of Water @ 10 Ft. of Head: 300Amps: 0.32/0.19
Height (In.): 15-1/2GPM of Oil 500 SSU @ 12 Ft. of Head: 1
GPM of Water @ 20 Ft. of Head: -Tank (Gal.): 21
GPH of Water @ 1 Ft. of Head: 720Max. Recommended Viscosity: 500 SSU
GPM of Water @ 9 Ft. of Head: 6GPM of Water @ 39 Ft. of Head: -
GPM of Water @ 18 Ft. of Head: -Shut-Off (Ft.): 13
Discharge Port (In.): 3/8GPM of Water @ 27 Ft. of Head: -
GPM of Water @ 7 Ft. of Head Low: 7GPM of Water @ 33 Ft. of Head: -
GPM of Water @ 15 Ft. of Head: -Cord (Ft.): -
Phase: 3GPM of Water @ 12 Ft. of Head: -
GPM of Water @ 6 Ft. of Head: 8GPM of Water @ 26 Ft. of Head: -
GPM of Water @ 13 Ft. of Head Low: -Bolt Circle Dia. (In.): 5
Nominal Tank Depth (In.): 8GPM of Oil 500 SSU @ 9 Ft. of Head: 4.8
GPM of Water @ 5 Ft. of Head: 9GPM of Water @ 16 Ft. of Head: -
GPM of Water @ 10 Ft. of Head: -Min. Immersion Depth (In.): 3
GPM of Oil 500 SSU @ 6 Ft. of Head: 5.5GPM of Water @ 40 Ft. of Head: -
Voltage: 230/460GPH of Water @ 9 Ft. of Head: 360
Max. Immersion Depth (In.): 6GPM of Oil 500 SSU @ 3 Ft. of Head: 8
GPM of Water @ 30 Ft. of Head: -RPM: 3450
GPH of Water @ 8 Ft. of Head: 420Length (In.): 44
GPM of Oil 500 SSU @ 24 Ft. of Head: -GPM of Water @ 3 Ft. of Head: 10
Motor Type: TENVGPH of Water @ 5 Ft. of Head: 540
Inlet/Outlet (In.): 3/8GPM of Oil 500 SSU @ 21 Ft. of Head: -
GPM of Water @ 24 Ft. of Head: -Motor Enclosure: TENV
GPH of Water @ 3 Ft. of Head: 600Country of Origin (subject to change): Multiple

Product Description

Pumping System, Pump/Tank, HP 1/8, Phase 3, Amps 0.32/0.19, Voltage 230/460, Length 44 In., Width 16 In., Height 15 1/2 In., Inlet/Outlet 3/8 In., RPM 3450, Motor Enclosure TENV, GPM of Water @ 3 Ft. of Head 10, GPM of Water @ 5 Ft. of Head 9, GPM of Water @ 9 Ft. of Head 6, 13, Tank 21 Gal., Max. Immersion Depth 6 In., Max. Recommended Viscosity 500 SSU, Max. Temp. 180 DegreeF
