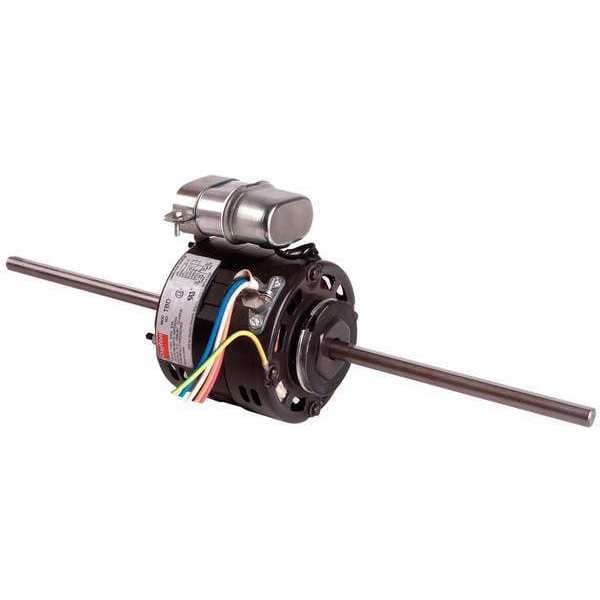

Room Air Cond Mtr, PSC, OAO, 1550 RPM

DAYTON| Zoro #: G0941193| Mfr #: 5WJC9

$102.30 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0941193 Mfr #: 5WJC9
Voltage: 115Body Dia.: 4-13/32"
Motor Shaft Design: FlatHz: 60
Motor Service Factor: 1.00Motor Shaft Rotation: CW/CCW
Frame: Non-StandardMotor Bearings: Sleeve
Includes: 7.5 MFD 370VAC CapacitorStandards: UL Recognized (E37403), CSA Certified (244617)
Lead Length: 60"Motor Application: HVAC/R
Mounting Stud Pattern: 2-3/4" x 2-3/4"Resilient Ring Dia.: 2-1/2"
Ins. Class: BNo. of Speeds: 4
Full Load Amps: 2.3Phase: 1
Shaft Length: 6-3/4"Capacitor Required: Yes
Max. Ambient Temp.: 40 Degrees CLength Less Shaft: 5-1/2"
Motor Sub Application: Room Air ConditionerBolt Circle Dia.: 3-7/8"
Motor Mounting Type: StudStud Size: 10-32 UNF
Ring to Ring Center: 5"Motor Enclosure Design: Open Air-Over
Item: Room Air Conditioner MotorNameplate RPM: 1550
HP: 1/6Motor Thermal Protection: Auto
Motor Design: Permanent Split CapacitorVoltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240
Shaft Dia.: 1/2"Duty: Continuous
Country of Origin (subject to change): China

Product Description

Room Air Conditioner Motor, Shaded Pole, Open Air-Over, Continuous, 1/6 HP, 1550 Nameplate RPM, Voltage 115, Non-Standard Frame, Service Factor 1.0, 60 Hz, Full Load Amps 2.3, Thermal Protection Auto, Insulation Class B, Max. Ambient Temp. 40 Degrees C, Number of Speeds 4, CW/CCW Rotation, 1 Phase, Stud Mounting, Sleeve Bearings, Body Dia. 4-13/32 In., Length Less Shaft 5-1/2 In., Shaft Type Flat, Shaft Dia. 1/2 In., Shaft Length 6-3/4 In. Ea., Stud Pattern 2-3/4 x 2-3/4 In., Stud Size 10-32 UNF
