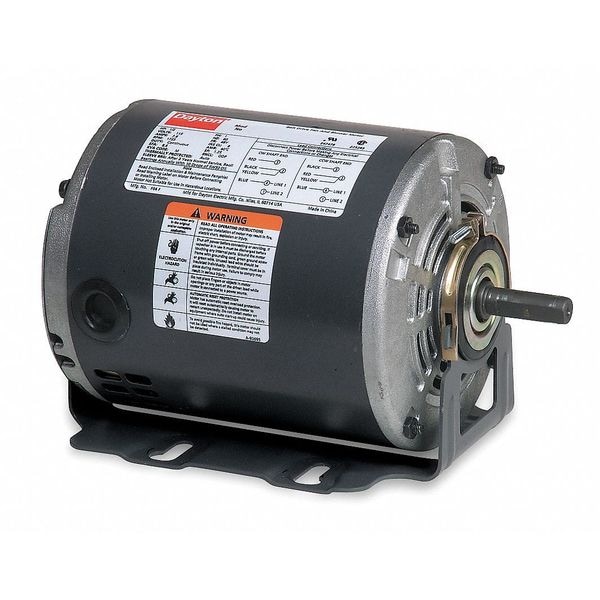

Split-Phase Belt Drive Motor, 3/4 HP, 56H Frame, 115 Voltage, 1725 Nameplate RPM, No. of Speeds: 1 (Discontinued)
- Mfr # 3ZP97
- Zoro # G1103182
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
3ZP97
Zoro #
G1103182
UPC #
190735297568
Country of Origin
China
Dimensions
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Body Dia.
5 5/8 in
Description
Belt Drive Motor, 1 Phase, Motor Design Split-Phase, 3/4 HP, Nameplate RPM 1725, No. of Speeds 1, Voltage 115, 11.6 Full Load Amps, 56H Frame, 60 Hz, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel, Shaft Dia. 5/8 in, Shaft Length 1 7/8 in, Motor Shaft Design Keyed
Documents & Resources
- Technical Guide 1 Opens PDF in new window
- Technical Guide 2 Opens PDF in new window
- Technical Guide 3 Opens PDF in new window
- Technical Guide 4 Opens PDF in new window
- Technical Guide 5 Opens PDF in new window
- Technical Guide 6 Opens PDF in new window
- Technical Guide 7 Opens PDF in new window
- Technical Guide 8 Opens PDF in new window
- Technical Guide 9 Opens PDF in new window
