Unit Bearing Motor, 9 WO, 115 Volt, Original OEM Motor, Evap Only

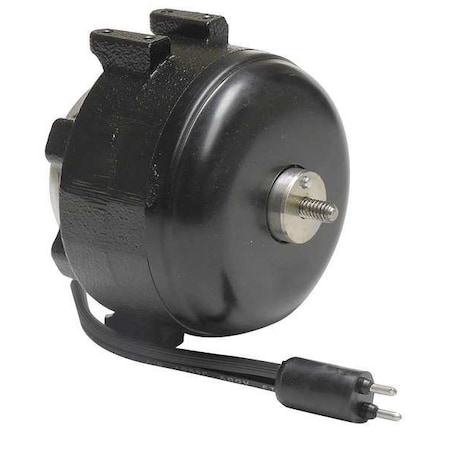

Em&S Unit Bearing Motor, 9 WO, 115 Volt, Original OEM Motor, Evap Only SPFBE91
Tap to zoom
Hover or click to zoom
$113.60
  • Motor Sub Application: Refrigerator/Freezer
  • Output Watts: 9 W
  • HP: 1/84
See full product details
This item ships free.
Total: $113.60

Em&S #SPFBE91 Specifications

  • Motor Sub Application: Refrigerator/Freezer
  • Output Watts: 9 W
  • HP: 1/84
  • RPM Range: 1,401-1,500
  • Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
  • Phase: Single
  • Voltage: 115V AC
  • Motor Shaft Rotation: CWLE
  • Nameplate RPM: 1,500
  • Frame: Non-Standard
  • Motor Mounting Position: All Angle
  • Hz: 60/50
  • Overall Length: 3 1/8 in
  • Length Less Shaft: 3 in
  • Motor Shaft Design: Threaded
  • Motor Application: HVAC/R
  • Motor Frame Material: Cast Iron
  • Cord Length: 13 in
  • Motor Bearings: Unit
  • Full Load Amps: 0.60
  • Standards: Meets UL and Canadian Standards for Safety
  • Max. Ambient Temp.: 40 Degrees C
  • Includes: (4) #8-36 Screws, Fan Silencer And Speed Nut
  • Ins. Class: B
  • Frame Material: Cast Iron
  • Motor Enclosure Design: Totally Enclosed Air-Over
  • Shaft Length: 5/8 in
  • Bolt Circle Dia.: 2 13/16 in
  • Item: Unit Bearing Motor
  • Motor Mounting Type: Rear/Foot
  • Body Dia.: 3 7/16 in
  • Shaft Dia.: 1/4 in
  • Motor Design: Shaded Pole
  • Motor Thermal Protection: Impedance
  • Ring Dia.: 2 81/100 in
  • Plug Type: Round 2 Pin
  • No. of Speeds: 1
  • Usable @ 200V: No
  • Usable @ 208V: No
  • Features: Cool running, Quiet Operation, Thick Film Lubricating System for Long Life and Dependability
  • Stud Size: #8-36
  • Stud Quantity: 8
  • Country of Origin (subject to change): United States

Description

Unit Bearing Motor, Single Phase, Motor Design Shaded Pole, 1/84 HP, Nameplate RPM 1,500, No. of Speeds 1, Voltage 115V AC, 0.60 Full Load Amps, Non-Standard Frame, Output Watts 9 W, 60/50 Hz, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Impedance, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Foot, Motor Frame Material Cast Iron, Motor Mounting Position All Angle
