Fill-Rite

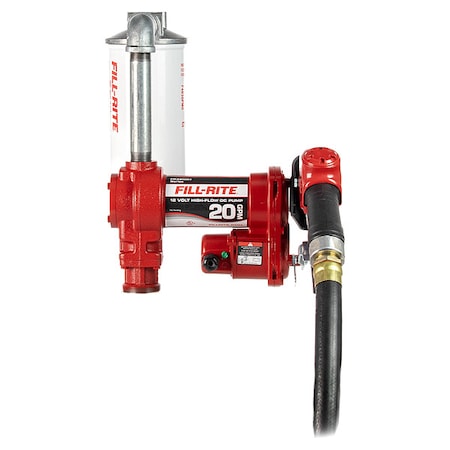

Fuel Transfer Pump, 12VDC, 20 GPM, 1/4 HP, Cast Iron, 1" MNPT Inlet

Hover or click to zoom Tap to zoom
Key Features
  • Voltage: 12V DC
  • Application: Designed for Gasoline, Diesel, Biodiesel Up to B20, E15, Kerosene and Mineral Spirit
  • HP: 1/4
  • Housing Material: Cast Iron
  • GPM: 20
  • Inlet Size: 1 in MNPT
  • Seal Material: Ceramic/Carbon
  • RPM: 2600
See full product details
$972.99
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Fill-Rite #FR4210HBFQ Specifications

  • Voltage: 12V DC
  • Application: Designed for Gasoline, Diesel, Biodiesel Up to B20, E15, Kerosene and Mineral Spirit
  • HP: 1/4
  • Housing Material: Cast Iron
  • GPM: 20
  • Inlet Size: 1 in MNPT
  • Seal Material: Ceramic/Carbon
  • RPM: 2600
  • Pump Design: Rotary Vane
  • Self-Priming: Yes
  • Seal Type: Mechanical
  • Max. Viscosity: 50 SUS
  • Item: Fuel Transfer Pump
  • Standards: UL/cUL Motor
  • Overall Height: 17 in
  • Overall Width: 9 in
  • Manufacturers Warranty Length: 2 yr
  • Nozzle Material: Aluminum
  • Hose Dia.: 1 in
  • Transfer Pump Application: Agriculture, Construction, Farming
  • Includes: 30 Micron Filter, Ultra High Flow Automatic Nozzle, 1 in x 20 ft Hose With Static Wire
  • Bypass Valve: Internal
  • Features: Explosion Proof Motor, Thermal Overload Protection
  • Overall Length: 14 in
  • Bearing Type: Permanently Lubricated Ball
  • Nozzle Type: Ultra High Flow Automatic
  • Suction Tube Length: 20 in to 34-3/4 in
  • Hose Length: 18 ft
  • Pressure Range: 0 psi to 16 psi
  • Compatible Fluids: Biodiesel up to B20, Diesel, E15, Gasoline, Kerosene
  • Metered: No
  • Power Cord Length: 25 ft
  • Duty Cycle: 30 min
  • Outlet Size: 3/4 in FNPT
  • Amps AC: 20
  • Country of Origin (subject to change): United States

Description

Fuel Transfer Pump, Rotary Vane Pump Design, 1/4 HP, Voltage 12V DC, GPM 20 gpm, Hose Dia. 1 in, Hose Length 18 ft, Suction Tube Length 20 in to 34-3/4 in, Metered No, Power Cord Length 25 ft, Inlet Size 1 in MNPT, Outlet Size 3/4 in FNPT, Max. Viscosity 50 SUS, 20 Amps AC, 2600 RPM, Internal Bypass Valve, Housing Material Cast Iron, Nozzle Material Aluminum, Bearing Type Permanently Lubricated Ball, Nozzle Type Ultra High Flow Automatic, Self-Priming Yes, Duty Cycle 30 min, Overall Length 14 in

Restrictions and Compliance

  • Hazardous material
