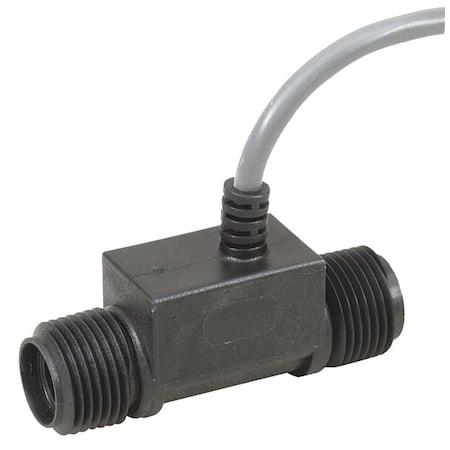

Flow Rate Sensor, 3/8 MNPT, 0.2 to 2.0 GPM

GEMS SENSORS| Zoro #: G0875935| Mfr #: FT-330, 226000

$123.39 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0875935 Mfr #: FT-330, 226000
Input Power: 5 to 24 VDC @ 8mAWidth (In.): 45/64
Max. Voltage: 24Operating Pressure (PSI): 200
Max. Viscosity (SSU): 32 to 81Item: Flow Rate Sensor
Connection Size (In.): 3/8 MNPTType: Turbine
Repeatability (%): +/-0.5Circuit Type: NPN
Cable Length (Ft.): 3Gauge/Conductor: #22 AWG
Agency Compliance: NSF Std. 61 ListedItem: Flow Rate Sensor
Type: TurbineHousing Material: Noryl
Connection Size (In.): 3/8 MNPTPulses per Gallon: 10, 313
Flow Range: 0.2 to 2.0Flow Range (GPM): 0.2 to 2.0
Accuracy (%): +/- 2Flow Range (LPM): 0.8 TO 7.6
Output Frequency (Hertz): 34 to 343Pulses per Liter: 2724
Recommended Filtration (microns): Less Than 50Burst Pressure (PSI): 1000
Operating Temp. Range (F): -4 to 176Wetted Materials: Nylon, SS, Noryl, POM, PS
Length (In.): 2-15/64Width (In.): 45/64
Height (In.): 57/64Includes: Cable
Country of Origin (subject to change): United States

Product Description

Flow Rate Sensor, Turbine, Housing Material Noryl, Connection Size 3/8 MNPT In., Max. Voltage 24, Pulses per Gallon 10, 313, Flow Range 0.2 to 2.0 GPM, Accuracy Plus or Minus 2 %, Cable Length 3 Ft., Input Power 5 to 24 VDC @ 8mA, Flow Range 0.8 TO 7.6 LPM, Max. Viscosity 32-81 SSU, Operating Pressure 200 PSI, Operating Temp. Range -4 to 176 F, Circuit Type NPN, Repeatability +/- 0.5 %, Wetted Materials Nylon, SS, Noryl, POM, PS, Agency Compliance NSF Std. 61 Listed, Includes Cable

Restrictions and Compliance

*1 : California Proposition 65 : This product contains a chemical known to the State of California to cause birth defects or other reproductive harm.
*2 : California Proposition 65 : This product contains a chemical known to the State of California to cause cancer.
