Gas Pressure Regulator & Solenoid Valve - 15mm, 24V DC, IP65, VAV1/15
Mfr # KS88013151
Zoro # G715295804
Specifications
Product Information
Details
Description
The HONEYWELL KROMSCHRODER VLV,SOLND,VRBL RTO REG,15MM RP,VAV1 /15 is a solenoid valve intended for use in applications involving regulation and control of gas pressure. This unit integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), compatible with gas, air, and biologically produced methane as specified by manufacturer guidelines. It features rapid actuation mechanism as per product specifications, an integrated pilot lamp for status indication, and is rated to IP65 ingress protection standard according to manufacturer documentation.
Key features include:
- Maximum inlet pressure: 500 mbar (7 psig)
- Outlet connection: DN 15 (1/2") Rp internal thread
- Outlet pressure range: 35–100 mbar
- Electrical specifications: Mains voltage 24 V DC; M20 cable gland electrical connection
- Certifications: FM and SA approved; EU certified

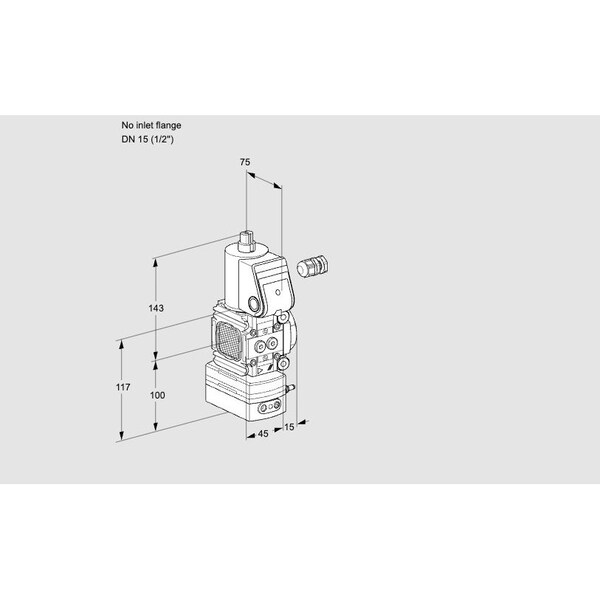

- No inlet flange; size designation "Size 1"
- Accessories include right-side pressure switch (30–110 mbar) with test point and two left-side screw plugs
