Gas Pressure Regulator with Solenoid Valve, 3/4" NPT, 24V DC, IP65
Mfr # KS88008462
Zoro # G215390481
Specifications
Product Information
Description
The HONEYWELL KROMSCHRODER REG,PRESS,3/4NPT,GAS,CPS L VAD 1T /20N/N is a pressure regulator intended for regulation and control of gas pressure in compatible systems. This unit features a Class A pressure regulator to EN 88 standards and incorporates a Class A solenoid valve to EN 161, suitable for use with gas, air, and biologically produced methane. It operates at a maximum inlet pressure of 500 mbar (7 psig) and provides an outlet pressure range between 35-100 mbar. The device includes a pilot lamp for status indication and has an IP65 rating.
Key features include:
- Inlet connection: 3/4" NPT
- Outlet: DN 15 (1/2") Rp internal thread
- Features rapid actuation mechanism
- Mains voltage: 24 V DC; electrical connection via M20 cable gland on the right side of the connection box
- FM and SA approved; EU certified

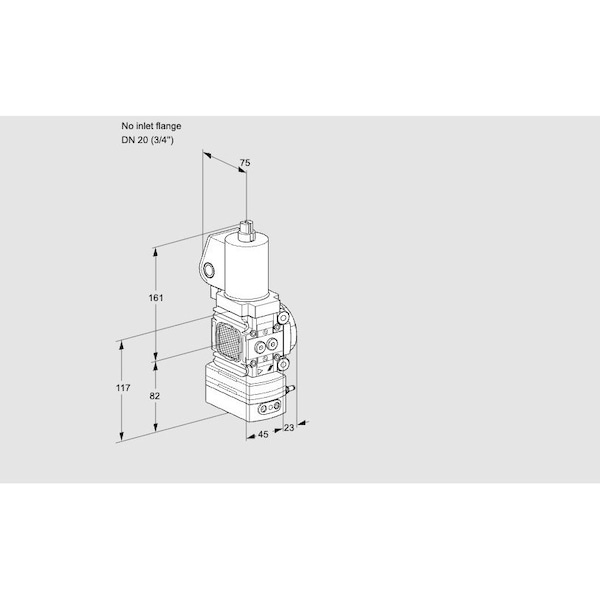

- No inlet flange included
- Valve seat reduced design; size 1 configuration
- Accessories include right-side pressure switch (30–110 mbar), test point for outlet pressure, left-side screw plugs
