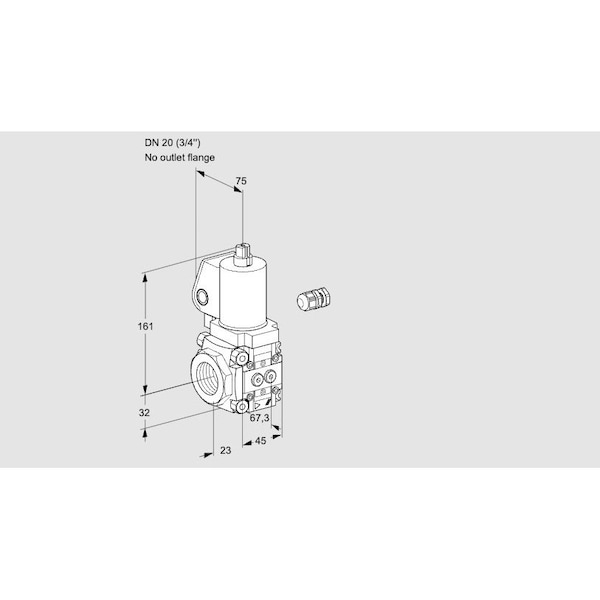

Solenoid Gas Safety Valve - Class A, 500 mbar, IP65, EN 161

The HONEYWELL KROMSCHRODER VAS120/-R/NPGL is a Class A solenoid gas safety valve intended for use as an automatic shut-off component in gas and air systems. The valve remains closed when de-energized and is rated for a maximum operating pressure of 500 mbar. It includes pilot lamp, flow adjustment mechanism, and IP65-rated enclosure. This model meets EN 161 standards and holds EU certification as well as FM and CSA approvals. It holds certification according to SIL 3 and PL e standards.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Operation types: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions with position indicator, visual indicator, fitted bypass/pilot gas valve, or fitted pressure switches DG../VC
