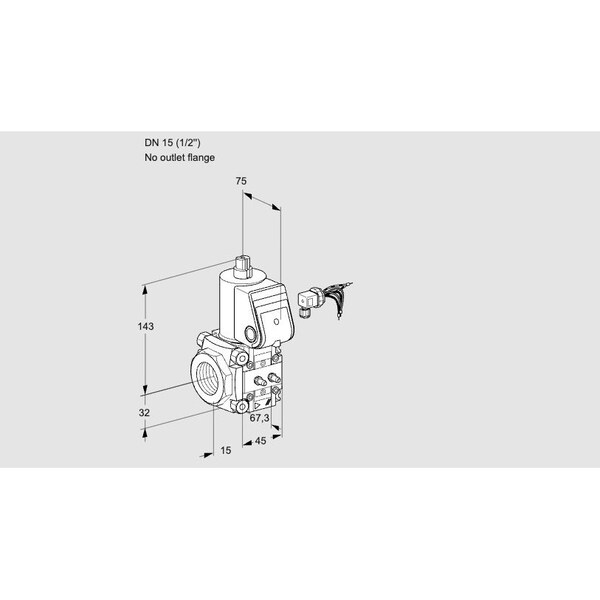

Solenoid Gas Safety Valve - VAS115/-R/NW, 500 mbar, IP65, Class A

The HONEYWELL KROMSCHRODER VAS115/-R/NW is a Class A solenoid gas safety valve intended for use as an automatic shut-off valve in gas and air systems. The valve remains closed when de-energized and is rated for operation at pressures up to 500 mbar. It includes a pilot lamp, flow adjustment capability, and IP65 enclosure. This model meets EN 161 standards; holds EU, FM, and CSA certifications. It conforms with requirements for SIL 3 and PL e applications.

Key features include:

• Size range: 1 to 9; nominal diameter (DN): 10 to 125
• Connection options: threaded or flanged
• Opening/closing types: quick opening/quick closing or slow opening/quick closing
• Mains voltage options: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions with position indicator, visual indicator, fitted bypass/pilot gas valve, or pressure switches
