  6. Kellems Wire Management, Cord Connectors, Straight Male, .13-.19", 1/4", Aluminum

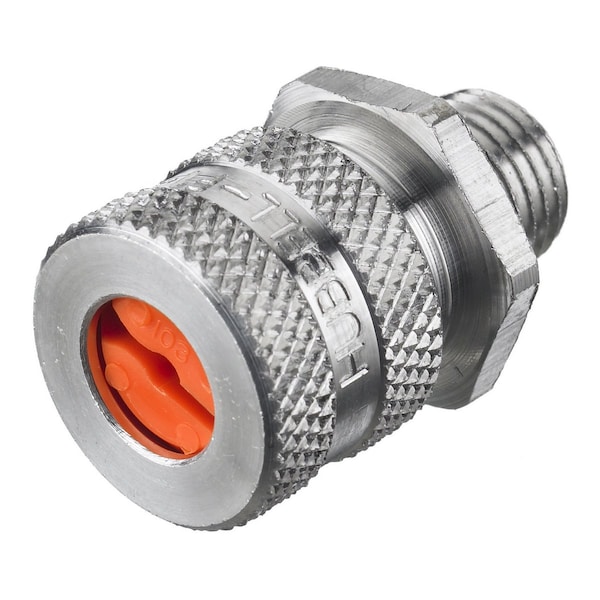

Hubbell Wiring Device-Kellems Kellems Wire Management, Cord Connectors, Straight Male, .13-.19", 1/4", Aluminum SHC1002 - main

Kellems Wire Management, Cord Connectors, Straight Male, .13-.19", 1/4", Aluminum

  • Mfr # SHC1002

  • Zoro # G100618515

product price:  $10.49
/ea

Key Features

Style - Connector
Straight Male
Cable Opening Max.
0.19 in
Standards
UL 514B, CSA Certified
Cable Opening Min.
0.13 in
Knockout Size
0.54 to 0.57 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SHC1002
Zoro #
G100618515
UPC #
783585200026
Country of Origin
United States

Dimensions

Knockout Size
0.54 to 0.57 in
Cord Dia. Range
0.13-0 .19 in (3.2- 4.7 mm)
Display Size
1/4 NPT
Hub Size
1/4

Details

Style - Connector
Straight Male
Cable Opening Max.
0.19 in
Standards
UL 514B, CSA Certified
Cable Opening Min.
0.13 in
Color
Orange
Type
Straight Male
Item
Cord Connectors
Material
Aluminum
Temp. Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Mounting Hardware Material
Locknut or Tapped Opening
Color Code
Orange
Series
Standard Duty
Environmental Rating
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Standard
UL Listed
Number Of Conductors
Single
Brand
Hubbell Wiring Device-Kellems
Nema Rating
NEMA Type 4, 4X, 12 and 13
Carton Quantity
50
Application
Straight Male- Form 1
Industry Standard(s)
UL Listed
Conductor Range
0.13-0 .19 in (3.2- 4.7 mm)
Item Type
Cord Connectors
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Material - Mounting Hardware
Locknut or Tapped Opening
Performance
Environmental - Flammability - UL 94-V2 Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
OEM Brand Name
Hubbell Wiring Device-Kellems
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)

Description

Hubbell Wiring Device Kellems, Kellems Wire Management, Cord Connectors,Straight Male, .13-.19", 1/4", Aluminum
