  6. Occ/Vac Sensor, DT, 1000sq.ft., Lt Alm

This item is Discontinued.

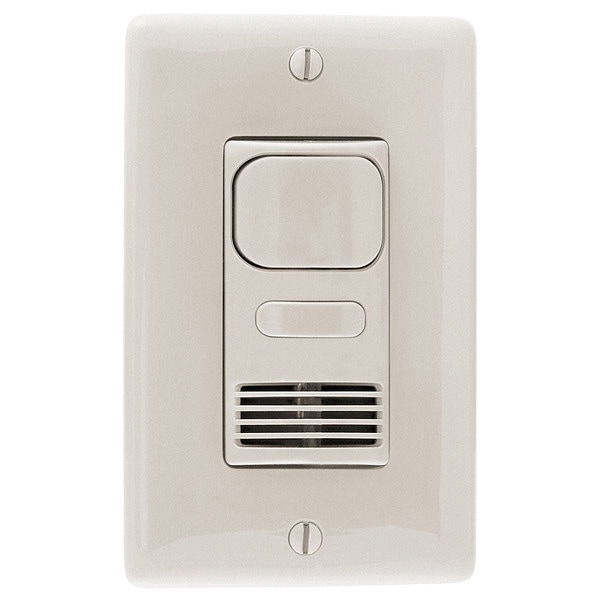

Hubbell Wiring Device-Kellems Occ/Vac Sensor, DT, 1000sq.ft., Lt Alm AD2000LA1

Occ/Vac Sensor, DT, 1000sq.ft., Lt Alm (Discontinued)

  • Mfr # AD2000LA1
  • Zoro # G9489943
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
AD2000LA1
Zoro #
G9489943
UPC #
783585413273
Country of Origin
China

Dimensions

Suggested Mounting Height - Motion Sensor
3 ft 6 in to 4 ft 6 in
Overall Width
1.69 in
Overall Depth
4.13 in
Minimum Mounting Height
42 in
Maximum Mounting Height
54 in
Overall Height
1.71 in
Mounting Height
42 to 54 inches above floor

Details

Communication Method - Motion Sensing and Dimming
Hard Wired
Sensing Technology
Passive Infrared (PIR)/Ultrasonic
Coverage Angle - Motion Sensor
180 Degrees
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Item
Motion Sensor
Time Delay
4 to 30 min
For Use With
Incandescent, LED and Fluorescent Lighting Loads
Max. Capacity @ 277VAC
1800W (Fluorescent, Incandescent, LED)
Standards
ASHRAE 90.1, CEC Title 24 Complaint, cULus Listed
Description/Special Features
(1) Relay, Adaptive Technology, Install and Forget Operation
Viewing Angle
180 Degrees
Watts @ 277V
1800
Watts @ 120V
800/1000
Max. Capacity @ 120VAC
1/4 HP Motor, 1000W (Fluorescent), 800W (Incandescent)
Color
Light Almond
Lighting Technology
Fluorescent, Incandescent
Communication Method
Hard Wired
Number of Gangs
1
Wall Plate
Not Included
Includes Motion Sensor
Yes
Includes Wall Plate
Wall Plate Not Included
Neutral Required
No
Load Rating @ 277V AC
1,800W (Fluorescent, Incandescent)
Maximum Time Delay
30 min
Load Rating @ 120V AC
1,000W (Fluorescent), 800W (Incandescent)
Manufacturer Warranty
5 yr
Rated Frequency
50/60 Hz
Installation Location
Wall Mount
Time Delay Adjustment Method
Adaptive
Sensor Operation
Occupancy, Vacancy
Coverage Type
Small Motion
Minimum Time Delay
4 min
Minimum Operating Temperature
32 Degrees F
Fan Rated
Yes
Includes Dimming Switch
Dimming Switch Not Included
Nightlight
No
Number of Buttons
1
Dimming Method
No Dimming
Series
H-Moss
Maximum Operating Temperature
104 Degrees F
Dimming Type
No Dimming
Maximum Coverage Area
1,000 sq ft
Front Press Switch
Auto/Manual "ON" operating mode
Sensitivity
Adaptive 0% to 100%
Power Supply
120/277V AC, 50/60Hz
Housing
High impact plastic (UL-94-5V)
Mounting Strap
Plated steel
Lens
Dual element pyrometer and 12 element cylindrical hard
Wire Leads
#18 AWG stranded wire, 6" long with½" stripped ends
Area
1000 square foot. Area of coverage based on passive infrared technology minor motion pattern. See illustration.
Ambient Light
Adjustable ambient light override, 10 to 500 foot candles
Load Capacity
Incandescent - 0 to 800 watts, 120V AC Ballast - 0 to 1000 watts, 277V AC Ballast 0 to 1800 watts
Device Color
Light Almond
Wallplate
NP26LA, SS26, RCW1LA
Operating Voltage
120 to 277V AC

Description

Motion Sensor, Number of Buttons 1, Sensor Operation Occupancy, Vacancy, Compatible with Series Not Applicable, Lighting Technology Fluorescent, Incandescent, Operating Voltage 120 to 277V AC, Sensing Technology Passive Infrared (PIR)/Ultrasonic, Load Rating @ 120V AC 1,000W (Fluorescent), 800W (Incandescent), Communication Method Hard Wired, Maximum Coverage Area 1,000 sq ft, Neutral Required No, Color Light Almond, Nightlight No, Dimming Method No Dimming, Dimming Type No Dimming
