Ingersoll Rand

Air Rock Drill, 2700 BPM, 73.0 CFM

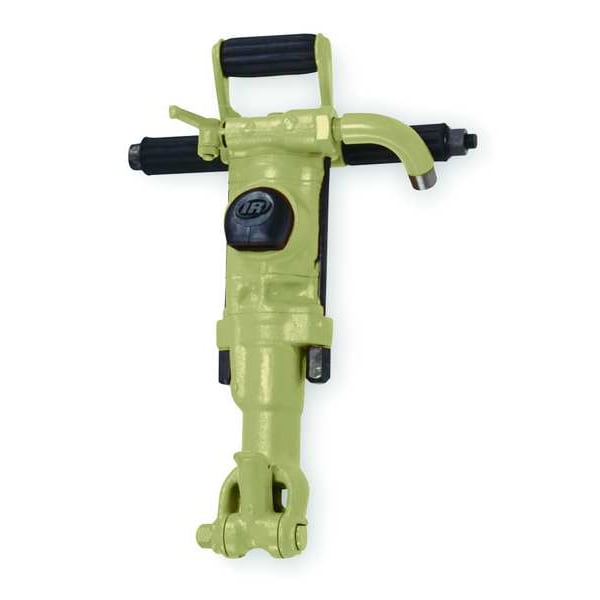

Ingersoll Rand Air Rock Drill, 2700 BPM, 73.0 CFM JRD30-B
Hover or click to zoom Tap to zoom
$2,565.54 17% off
$2,120.00
  • Item: Air Rock Drill
  • Shank Size: 7/8 x 4-1/4 in
  • Piston Stroke: 1 7/16 in
See full product details
This item ships free.

Total: $2,120.00

Ingersoll Rand #JRD30-B Specifications

  • Item: Air Rock Drill
  • Shank Size: 7/8 x 4-1/4 in
  • Piston Stroke: 1 7/16 in
  • Piston Bore: 2 3/8 in
  • Blows per Minute: 2,700
  • CFM @ Full Load: 73.0
  • Hole Depth: 10 in
  • Features: Easily-adjustable 3-speed Throttles with Reversible Pawls
  • Air Inlet: 3/4 in NPT
  • Overall Length: 19 1/2 in
  • Hole Dia.: 1 1/2 in
  • Min. Hose Size: 3/4 in
  • Retainer Type: Latch
  • Handle Type: T-Grip
  • Required Pressure: 90 psi
  • Series: JRD30 Series
  • Tool Weight: 29 lb
  • Air Inlet Gender: Male
  • Air Consumption: 73 cfm
  • Minimum Hose Size: 3/4 in
  • Air Inlet Size: 3/4 in
  • Sound Reducing Muffler: Yes
  • Maximum Blows per Minute: 2,700 bpm
  • Tool Length: 19 1/2 in
  • Vibration Reducing Handles: No
  • Piston Stroke Length: 1 7/16 in
  • For Use On: Concrete
  • Number of Speed Settings: 3
  • Primary Material Application: Rock
  • Kit Contents: (1) Bare Tool
  • Hole Diameter: 1 1/2 in
  • Shank Shape: Hex
  • Product Type: Rock Drill
  • Maximum Hole Depth: 10 ft
  • Piston Bore Size: 2 3/8 in
  • Hex Shank Size: 7/8 in x 4 1/4 in
  • Maximum Hole Diameter: 1 1/2 in
  • Air Inlet Type: NPT
  • Country of Origin (subject to change): United States

Description

Air Rock Drill, Weight Class 30 lb, Shank Size 7/8 in x 4 1/4 in, Maximum Blows per Minute 2,700 bpm, Piston Bore Size 2 3/8 in, Piston Stroke Length 1 7/16 in, Retainer Type Latch, Vibration Reducing Handles No, Sound Reducing Muffler Yes, Air Inlet Gender Male, Air Inlet Size 3/4 in, Air Inlet Type NPT, Air Consumption 73 cfm, For Use On Concrete, Handle Type T-Handle, Hex Shank Size 7/8 in x 4 1/4 in, Hole Depth 10 ft, Hole Diameter 1 1/2 in, Kit Contents (1) Bare Tool
