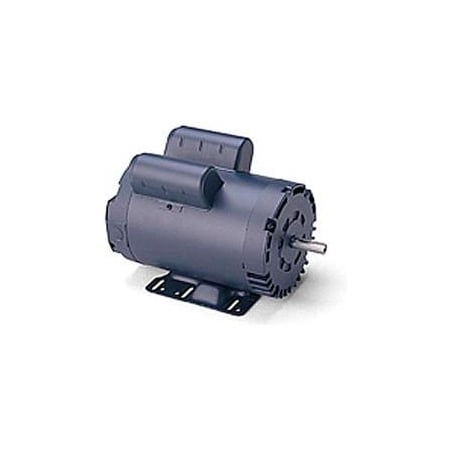

Leeson Motors - 1.5HP, 115/208-230V, 1740RPM, DP, Rigid Mount, 1.15 S.F.

Compressor duty motor: 1.5hp, 1740rpm, 145 frame, drip-proof (dp), 115/208-230v, 1ph, continuous duty, no thermal protection, 1.15 service factor, rigid mount. motors are designed for air compressor, pump, and fan and blower duty applications which require high breakdown torque and rugged mechanical construction. mechanical features: prelubricated double shielded, amply sized, ball bearing construction to accommodate varying belt loads and tension. electrical features: high efficiency energy saving designs. Class f copper windings. Class f varnish. High starting and breakdown torque. Motors are wired for cw rotation facing lead end. They may be reconnected for ccw rotation.
