Oil Pump Transfer System, Air-Operated

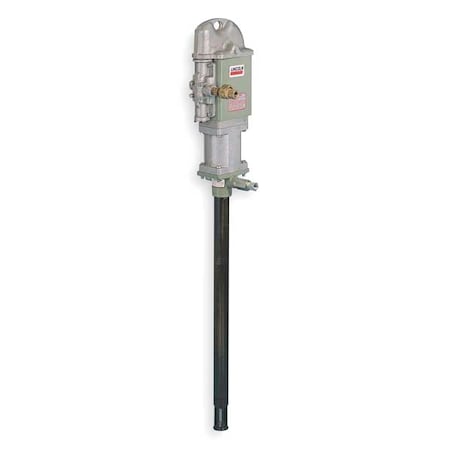

Lincoln Oil Pump Transfer System, Air-Operated 1901
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$4,885.00
  • Item: Air Operated Drum Pump
  • Type: Air-Operated
  • Air Motor Size (In.): 4-1/4
See full product details
This item ships free.
Total: $4,885.00

Lincoln #1901 Specifications

  • Item: Air Operated Drum Pump
  • Type: Air-Operated
  • Air Motor Size (In.): 4-1/4
  • Pump Ratio: 12:1
  • Container Size: 55 gal.
  • Consumption @ 100 PSI: 40 CFM
  • Working Flow Max. (GPM): 3
  • Output: -
  • Outlet Size: 3/4" NPT
  • Min. Air Inlet Pressure: 40
  • For Use With: -
  • Fluid Outlet Thread (In.): -
  • Outlet Pressure Max. (PSI): 2400
  • Ounces per Stroke: 2.49
  • Evacuate: -
  • Fluid Inlet Thread (In.): -
  • Extract: -
  • Includes: Bung Bushing
  • Air Inlet (In.): 1/2 NPT
  • Max. Air Inlet PSI: 200
  • Standards: -
  • Fluid In/Out NPT (F): -
  • Pump for Multiple Outlets: Yes
  • Max. Output: 3 gpm
  • Suction Tube OD: 2 1/8 in
  • Max. Flow Rate: 12.6 gpm
  • Discharge Connection Type: FNPT
  • Suction Tube Material: Steel
  • Housing Material - Pumps: Steel
  • Food Grade: No
  • Runs Dry: No
  • Includes Discharge Hose: No
  • Air Inlet Size: 1/2 in FNPT
  • Self-Priming: Yes
  • For Container Size: 55 gal
  • Max. Fluid Temp.: 120 Degrees F
  • Includes Spout: No
  • Min. Fluid Temp.: 30 Degrees F
  • Wetted Materials: Polyurethane, steel,buna N
  • Max. Oil Flow: 12.6 gpm
  • Ratio: 12:1
  • Pump Connection Type: FNPT
  • For Container Type: Drum
  • Pump Connection ID: 3/4 in
  • Includes Suction Tube: Yes
  • Compatible Chemicals: Automatic Transmission Fluid, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Motor Oil
  • Max. Air Pressure: 200 psi
  • Air Consumption: 40 cfm
  • Includes Bung Adapter: No
  • Discharge Tube Outlet ID: 3/4 in
  • For Media Type: Automatic Transmission Fluid, Hydraulic Oil, Motor Oil
  • Suction Tube Length: 34 in
  • Metered: No
  • Diesel Exhaust Fluid Compatible: No
  • Variable Speed: No
  • Not Recommended Chemicals: Diesel Fuel, Gear Lube, Grease, Kerosene
  • Includes Nozzle: No
  • Seal Material: Buna-N, Polyurethane
  • Power Source: Air
  • Explosion Proof: No
  • Grease: X
  • Max. Outlet Pressure: 2,400 psi
  • Gear Lube: X
  • Country of Origin (subject to change): China
Feedback Help us improve our product information

Description

Air Operated Drum Pump, Pump Package Type Basic Pump without Discharge Hose, Air Inlet Size 1/2 in FNPT, For Container Size 55 gal, For Container Type Drum, Air Consumption 40 cfm, Max. Flow Rate 12.6 gpm, Max. Oil Flow 12.6 gpm, Discharge Connection Type FNPT, Discharge Tube Outlet ID 3/4 in, Max. Air Pressure 200 psi, Ratio 12:1, Max. Outlet Pressure 2,400 psi, Min. Fluid Temp. 30 Degrees F, Max. Fluid Temp. 120 Degrees F, Seal Material Buna-N, Polyurethane, Power Source Air, Variable Speed No
