Little Giant Pump

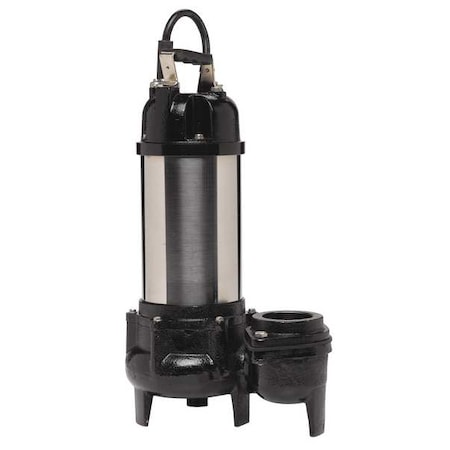

Water Garden Pump, 5-7/8 In. W

Hover or click to zoom Tap to zoom
Key Features
  • Item: Pond Pump
  • HP: 3/4 hp
  • Voltage: 120V AC
  • Max. Head: 36 ft
  • Length: 6 13/16 in
  • Hz: 60
  • Height: 14 7/16 in
  • Duty: Continuous
See full product details
$584.50
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Little Giant Pump #566069 Specifications

  • Item: Pond Pump
  • HP: 3/4 hp
  • Voltage: 120V AC
  • Max. Head: 36 ft
  • Length: 6 13/16 in
  • Hz: 60
  • Height: 14 7/16 in
  • Duty: Continuous
  • Cord Length: 19 ft
  • Seal Material: Carbon and Ceramic
  • Width: 5 7/8 in
  • Installation Position: Vertical
  • Cord Type: 16/3 AWG, SJTW
  • GPH of Water @ 10 Ft. of Head: 4,345
  • Full Load Amps: 8 A
  • Overload Protection: yes
  • Motor Type: PSC
  • Motor RPM: 3,600 RPM
  • Outlet: 2 in (F)NPT
  • Impeller Material: Cast Iron
  • Inlet: 1-1/4 in Opening
  • Agency Compliance: cCSAus
  • Housing Material: Cast iron
  • Length (Straight Wireway): 6 13/16 in
  • Intake Type: NPT
  • Maximum RPM: 3,600 RPM
  • Submersible: Yes
  • Manufacturer Warranty Length: 2 yr
  • Minimum Flow Rate: 37.7 gpm
  • Maximum Flow Rate: 81.5 gpm
  • Flow Rate @ 1 ft of Head (Maximum): Not Applicable
  • Flow Rate @ 15 ft of Head (Maximum): 62.5 gpm
  • Flow Rate @ 30 ft of Head (Maximum): Not Applicable
  • Overall Width: 5.8 in
  • Flow Rate @ 70 ft of Head (Maximum): Not Applicable
  • Feet of Head (Minimum): 5 ft
  • Flow Rate @ 60 ft of Head (Maximum): Not Applicable
  • Pump Type: Water Garden Pump
  • Duty Cycle: Continuous
  • Flow Rate @ 10 ft of Head (Maximum): 72.5 gpm
  • Electrical Connection Type: Plug-In
  • Compatible Discharge Pipe Size: 2 in
  • Horsepower: 3/4 hp
  • Thermal Overload Protection: Yes
  • Series: WGFP
  • Discharge Type: NPT
  • Maximum Feet of Head: 36 ft
  • Flow Rate @ 50 ft of Head (Maximum): Not Applicable
  • Nameplate Voltage: 120V AC
  • Discharge Connection: 2 in NPT
  • Overall Height: 14.4 in
  • Solid Diameter (Maximum): 0.75 in
  • Flow Rate @ 5 ft of Head (Maximum): Not Applicable
  • Intake Connection: 1 1/4 in NPT
  • Flow Rate @ 40 ft of Head (Maximum): Not Applicable
  • Compatible Intake Pipe Size: 1 1/4 in
  • Pump Housing Material: Cast Iron
  • Flow Rate @ 20 ft of Head (Maximum): 51.1 gpm
  • Overall Length: 8.8 in
  • Frequency: 60 Hz
  • Country of Origin (subject to change): Taiwan, Province of China

Description

Pond Pump, Pump Housing Material Cast Iron, Horsepower 3/4 hp, Nameplate Voltage 120V AC, Maximum Feet of Head 36 ft, Flow Rate @ 10 ft of Head (Maximum) 72.5 gpm, Flow Rate @ 15 ft of Head (Maximum) 62.5 gpm, Flow Rate @ 20 ft of Head (Maximum) 51.1 gpm, Compatible Intake Pipe Size 1 1/4 in, Compatible Discharge Pipe Size 2 in, Intake Type NPT, Discharge Type NPT, Cord Length 19 ft, Pump Type Water Garden Pump, Submersible Yes, Series WGFP, Amps 8 A, Duty Cycle Continuous
