  11. Hydraulic Filter, replaces HYDAC/HYCON 0330R010BN4HCV, Return Line, 10 micron, Outside-In
Main Filter

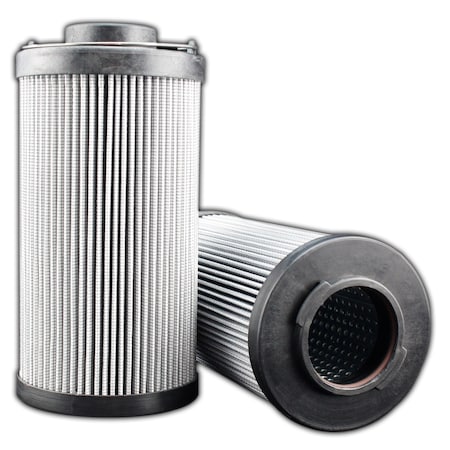

Hydraulic Filter, replaces HYDAC/HYCON 0330R010BN4HCV, Return Line, 10 micron, Outside-In

Main Filter Hydraulic Filter, replaces HYDAC/HYCON 0330R010BN4HCV, Return Line, 10 micron, Outside-In MF0593191
Hover or click to zoom Tap to zoom
$79.92
  • Filter Style: Return Line
  • Replaces OEM Brand: HYDAC/HYCON
  • Replaces OEM Part: 0330R010BN4HCV
See full product details
This item ships free.
Total: $79.92

Main Filter #MF0593191 Specifications

  • Filter Style: Return Line
  • Replaces OEM Brand: HYDAC/HYCON
  • Replaces OEM Part: 0330R010BN4HCV
  • Filter Rating (Microns): 10
  • Flow Direction: Outside-In
  • Beta Ratio 1: 200/9.9
  • Beta Ration 2: 1000/12.4
  • Seal Type: Viton
  • Height: 7.64
  • OD Top: 3.72
  • OD Bottom: 3.72
  • ID Bottom: 1.9
  • By Pass Valve Setting (PSI): 43.5
  • Collapse Pressure: 435
  • Micron Rating: 10
  • Max. Pressure (PSI): 43.5
  • OEM Replacement Brand: HYDAC/HYCON
  • Filter Type: Return Line
  • Item: Hydraulic Filter
  • Weight: 1.716
  • Application: Filtration
  • Product Media: Glass
  • Country of Origin (subject to change): Canada

Description

Main Filter MF0593191 replaces OEM 0330R010BN4HCV by HYDAC/HYCON and is compatible in fit, form and function.Filter Technical Specifications Product Media: Glass Micron Rating: 10 Seal Type: Viton Height: 7.63in OD Top: 3.721in OD Bottom: 3.721in ID_Bottom: 1.898inAll of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.Images may be a general representations of products
