  11. Hydraulic Filter, replaces HYDAC/HYCON 1263021, Return Line, 10 micron, Outside-In
Main Filter

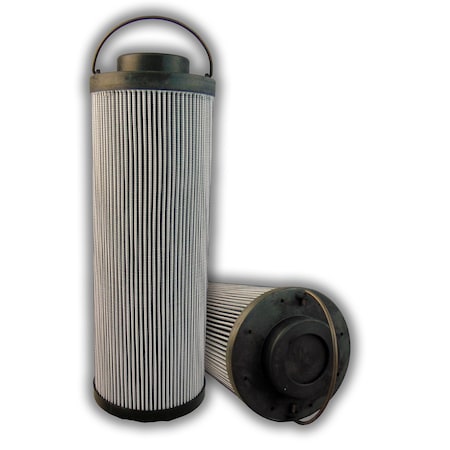

Hydraulic Filter, replaces HYDAC/HYCON 1263021, Return Line, 10 micron, Outside-In

Main Filter Hydraulic Filter, replaces HYDAC/HYCON 1263021, Return Line, 10 micron, Outside-In MF0835005
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$107.06
  • Filter Style: Return Line
  • Replaces OEM Brand: HYDAC/HYCON
  • Replaces OEM Part: 1263021
See full product details
This item ships free.
Total: $107.06

Main Filter #MF0835005 Specifications

  • Filter Style: Return Line
  • Replaces OEM Brand: HYDAC/HYCON
  • Replaces OEM Part: 1263021
  • Filter Rating (Microns): 10
  • Flow Direction: Outside-In
  • Beta Ratio 1: 200/9.9
  • Beta Ration 2: 1000/12.4
  • Seal Type: Viton
  • Height: 13.11
  • OD Top: 4.49
  • OD Bottom: 4.49
  • ID Bottom: 2.7
  • By Pass Valve Setting (PSI): 43.5
  • Collapse Pressure: 435
  • Micron Rating: 10
  • Max. Pressure (PSI): 43.5
  • OEM Replacement Brand: HYDAC/HYCON
  • Filter Type: Return Line
  • Item: Hydraulic Filter
  • Weight: 3.696
  • Application: Filtration
  • Product Media: Glass
  • Country of Origin (subject to change): Canada
Feedback Help us improve our product information

Description

Main Filter MF0064476 replaces OEM 01263021 by HYDAC/HYCON and is compatible in fit, form and function.

Filter Technical Specifications
Product Media: Glass
Micron Rating: 10
Seal Type: Viton
Height: 13.11in
OD Top: 4.488in
OD Bottom: 4.488in
ID_Bottom: 2.697in

All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941

All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.

Images may be a general representations of products+

Restrictions and Compliance

  • This item has been restricted from sale in the following states: No
