  11. Hydraulic Filter, replaces SCHROEDER SBF960413Z25V, Coreless, 25 micron, Outside-In
Main Filter

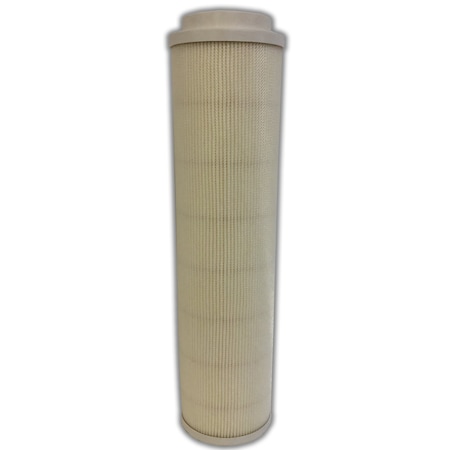

Hydraulic Filter, replaces SCHROEDER SBF960413Z25V, Coreless, 25 micron, Outside-In

Main Filter Hydraulic Filter, replaces SCHROEDER SBF960413Z25V, Coreless, 25 micron, Outside-In MF0591859
Tap to zoom
Hover or click to zoom
$92.18
  • Filter Style: Coreless
  • Replaces OEM Brand: SCHROEDER
  • Filter Rating (Microns): 25
See full product details
This item ships free.
Total: $92.18

Main Filter #MF0591859 Specifications

  • Filter Style: Coreless
  • Replaces OEM Brand: SCHROEDER
  • Replaces OEM Part: SBF960413Z25V
  • Filter Rating (Microns): 25
  • Flow Direction: Outside-In
  • Beta Ratio 1: 200/20.7
  • Beta Ration 2: 1000/26.6
  • Seal Type: Viton
  • Height: 12.677
  • OD Top: 3.11
  • OD Bottom: 3.11
  • ID Top: 2.008
  • Collapse Pressure: 145
  • Micron Rating: 25
  • OEM Replacement Brand: SCHROEDER
  • Filter Type: Coreless
  • Item: Hydraulic Filter
  • Product Media: Glass
  • Country of Origin (subject to change): Canada

Description

Main Filter MF0591859 replaces OEM SBF960413Z25V by SCHROEDER and is compatible in fit, form and function.Filter Technical Specifications Product Media: Glass Micron Rating: 25 Seal Type: Viton Height: 12.677in OD Top: 3.110in OD Bottom: 3.110in ID Top: 2.008inAll of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.Images may be a general representations of products

Restrictions and Compliance

  • This item has been restricted from sale in the following states: No
