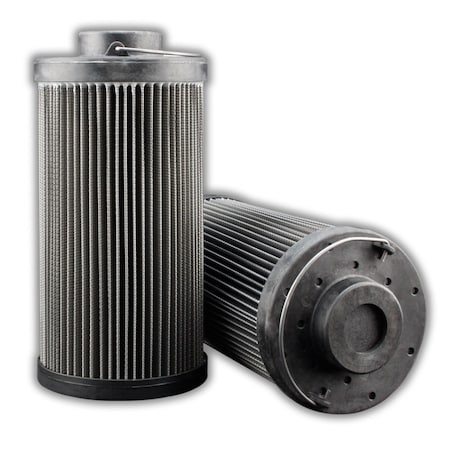

Hydraulic Filter, replaces STAUFF RE090S40V, Return Line, 50 micron, Outside-In

Main Filter Hydraulic Filter,  replaces STAUFF RE090S40V,  Return Line,  50 micron,  Outside-In MF0596054
Tap to zoom
Hover or click to zoom
$99.58
  • Filter Style: Return Line
  • Replaces OEM Brand: STAUFF
  • Filter Rating (Microns): 50
See full product details
This item ships free.

Total: $99.58

Main Filter #MF0596054 Specifications

  • Filter Style: Return Line
  • Replaces OEM Brand: STAUFF
  • Replaces OEM Part: RE090S40V
  • Filter Rating (Microns): 50
  • Flow Direction: Outside-In
  • Beta Ratio 1: 3/50
  • Seal Type: Viton
  • Height: 7.64
  • OD Top: 3.72
  • OD Bottom: 3.72
  • ID Bottom: 1.9
  • By Pass Valve Setting (PSI): 43.5
  • Collapse Pressure: 435
  • Micron Rating: 50
  • Max. Pressure (PSI): 43.5
  • OEM Replacement Brand: STAUFF
  • Filter Type: Return Line
  • Item: Hydraulic Filter
  • Application: Filtration
  • Weight: 1.716
  • Product Media: Wire Mesh
  • Country of Origin (subject to change): Canada

Description

Main Filter MF0064309 replaces OEM RE090S40V by STAUFF and is compatible in fit, form and function.Filter Technical Specifications Product Media: Wire Mesh Micron Rating: 50 Seal Type: Viton Height: 7.63in OD Top: 3.721in OD Bottom: 3.721in ID_Bottom: 1.898inAll of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.Images may be a general representations of products+

Restrictions and Compliance

  • This item has been restricted from sale in the following states: No
